Hello Folks,

• Jetpack Compose is seriously taking over, and it’s only getting bigger! Today, we’re about to create something awesome — our own custom gauge speedometer using canvas in Compose. Cool, right?
• Let’s jump in and design this whole thing from the ground up! 🔥How are we going to do that?

Alright, let’s get into it! To create a custom needle in Jetpack Compose, there are two ways you can roll:

1. Canvas Magic: Draw the needle directly using Canvas—completely custom!
2. Image Spin: Use an image as the needle, find its center, and rotate it based on the percentage.

In this blog, we’re sticking with the custom needle using the canvas approach, but don’t worry — I’ll also share the code for the image method, where you can lock in the needle’s center point to keep it steady during rotation.

So, how do we build the needle using canvas? We’ll create a Path for the needle right inside the canvas.

Let’s jump into the code.

Canvas(modifier = Modifier.fillMaxSize()) {
    val sweepAngle = 240f
    val height = size.height
    val width = size.width
    val startAngle = 150f

    val centerOffset = Offset(width / 2f, height / 2.09f)

    drawCircle(Color.White, 24f, centerOffset)

    // Calculate needle angle based on inputValue
    val needleAngle = (meterValue / 100f) * sweepAngle + startAngle
    val needleLength = 160f // Adjust this value to control needle length
    val needleBaseWidth = 10f // Adjust this value to control the base width


    val needlePath = Path().apply {
        // Calculate the top point of the needle
        val topX = centerOffset.x + needleLength * cos(
            Math.toRadians(needleAngle.toDouble()).toFloat()
        )
        val topY = centerOffset.y + needleLength * sin(
            Math.toRadians(needleAngle.toDouble()).toFloat()
        )

        // Calculate the base points of the needle
        val baseLeftX = centerOffset.x + needleBaseWidth * cos(
            Math.toRadians((needleAngle - 90).toDouble()).toFloat()
        )
        val baseLeftY = centerOffset.y + needleBaseWidth * sin(
            Math.toRadians((needleAngle - 90).toDouble()).toFloat()
        )
        val baseRightX = centerOffset.x + needleBaseWidth * cos(
            Math.toRadians((needleAngle + 90).toDouble()).toFloat()
        )
        val baseRightY = centerOffset.y + needleBaseWidth * sin(
            Math.toRadians((needleAngle + 90).toDouble()).toFloat()
        )

        moveTo(topX, topY)
        lineTo(baseLeftX, baseLeftY)
        lineTo(baseRightX, baseRightY)
        close()
    }

    drawPath(
        color = Color.White,
        path = needlePath
    )
}

• If you copy and paste this code, this is how it’s going to look like

Now let’s give this needle some flair with a background and throw in a light gradient to make it pop!

Canvas(modifier = Modifier.fillMaxSize()) {
    val sweepAngle = 240f
    val height = size.height
    val width = size.width
    val startAngle = 150f

    val centerOffset = Offset(width / 2f, height / 2.09f)
    drawCircle(
        Brush.radialGradient(
            listOf(
                innerGradient.copy(alpha = 0.2f),
                Color.Transparent
            )
        ), width / 2f
    )
    drawCircle(Color.White, 24f, centerOffset)

    // Calculate needle angle based on inputValue
    val needleAngle = (meterValue / 100f) * sweepAngle + startAngle
    val needleLength = 160f // Adjust this value to control needle length
    val needleBaseWidth = 10f // Adjust this value to control the base width


    val needlePath = Path().apply {
        // Calculate the top point of the needle
        val topX = centerOffset.x + needleLength * cos(
            Math.toRadians(needleAngle.toDouble()).toFloat()
        )
        val topY = centerOffset.y + needleLength * sin(
            Math.toRadians(needleAngle.toDouble()).toFloat()
        )

        // Calculate the base points of the needle
        val baseLeftX = centerOffset.x + needleBaseWidth * cos(
            Math.toRadians((needleAngle - 90).toDouble()).toFloat()
        )
        val baseLeftY = centerOffset.y + needleBaseWidth * sin(
            Math.toRadians((needleAngle - 90).toDouble()).toFloat()
        )
        val baseRightX = centerOffset.x + needleBaseWidth * cos(
            Math.toRadians((needleAngle + 90).toDouble()).toFloat()
        )
        val baseRightY = centerOffset.y + needleBaseWidth * sin(
            Math.toRadians((needleAngle + 90).toDouble()).toFloat()
        )

        moveTo(topX, topY)
        lineTo(baseLeftX, baseLeftY)
        lineTo(baseRightX, baseRightY)
        close()
    }

    drawPath(
        color = Color.White,
        path = needlePath
    )
}

• After adding a background with drawCircle, it’s going to look something like the image below.

• We have added our two arcs, 1 arc with a full swipe, and the other based on our percentage value.

This is what our final code will look like.

@Composable
fun ProtectionMeter(
    modifier: Modifier = Modifier,
    inputValue: Int,
    trackColor: Color = Color(0xFFE0E0E0),
    progressColors: List<Color>,
    innerGradient: Color,
    percentageColor: Color = Color.White
) {

    val meterValue = getMeterValue(inputValue)
    Box(modifier = modifier.size(196.dp)) {
        Canvas(modifier = Modifier.fillMaxSize()) {
            val sweepAngle = 240f
            val fillSwipeAngle = (meterValue / 100f) * sweepAngle
            val height = size.height
            val width = size.width
            val startAngle = 150f
            val arcHeight = height - 20.dp.toPx()

            drawArc(
                color = trackColor,
                startAngle = startAngle,
                sweepAngle = sweepAngle,
                useCenter = false,
                topLeft = Offset((width - height + 60f) / 2f, (height - arcHeight) / 2f),
                size = Size(arcHeight, arcHeight),
                style = Stroke(width = 50f, cap = StrokeCap.Round)
            )

            drawArc(
                brush = Brush.horizontalGradient(progressColors),
                startAngle = startAngle,
                sweepAngle = fillSwipeAngle,
                useCenter = false,
                topLeft = Offset((width - height + 60f) / 2f, (height - arcHeight) / 2),
                size = Size(arcHeight, arcHeight),
                style = Stroke(width = 50f, cap = StrokeCap.Round)
            )
            val centerOffset = Offset(width / 2f, height / 2.09f)
            drawCircle(
                Brush.radialGradient(
                    listOf(
                        innerGradient.copy(alpha = 0.2f),
                        Color.Transparent
                    )
                ), width / 2f
            )
            drawCircle(Color.White, 24f, centerOffset)

            // Calculate needle angle based on inputValue
            val needleAngle = (meterValue / 100f) * sweepAngle + startAngle
            val needleLength = 160f // Adjust this value to control needle length
            val needleBaseWidth = 10f // Adjust this value to control the base width


            val needlePath = Path().apply {
                // Calculate the top point of the needle
                val topX = centerOffset.x + needleLength * cos(
                    Math.toRadians(needleAngle.toDouble()).toFloat()
                )
                val topY = centerOffset.y + needleLength * sin(
                    Math.toRadians(needleAngle.toDouble()).toFloat()
                )

                // Calculate the base points of the needle
                val baseLeftX = centerOffset.x + needleBaseWidth * cos(
                    Math.toRadians((needleAngle - 90).toDouble()).toFloat()
                )
                val baseLeftY = centerOffset.y + needleBaseWidth * sin(
                    Math.toRadians((needleAngle - 90).toDouble()).toFloat()
                )
                val baseRightX = centerOffset.x + needleBaseWidth * cos(
                    Math.toRadians((needleAngle + 90).toDouble()).toFloat()
                )
                val baseRightY = centerOffset.y + needleBaseWidth * sin(
                    Math.toRadians((needleAngle + 90).toDouble()).toFloat()
                )

                moveTo(topX, topY)
                lineTo(baseLeftX, baseLeftY)
                lineTo(baseRightX, baseRightY)
                close()
            }

            drawPath(
                color = Color.White,
                path = needlePath
            )
        }

        Column(
            modifier = Modifier
                .padding(bottom = 5.dp)
                .align(Alignment.BottomCenter), horizontalAlignment = Alignment.CenterHorizontally
        ) {
            Text(text = "$inputValue %", fontSize = 20.sp, lineHeight = 28.sp, color = percentageColor)
            Text(text = "Percentage", fontSize = 16.sp, lineHeight = 24.sp, color = Color(0xFFB0B4CD))
        }

    }
}

private fun getMeterValue(inputPercentage: Int): Int {
    return if (inputPercentage < 0) {
        0
    } else if (inputPercentage > 100) {
        100
    } else {
        inputPercentage
    }
}

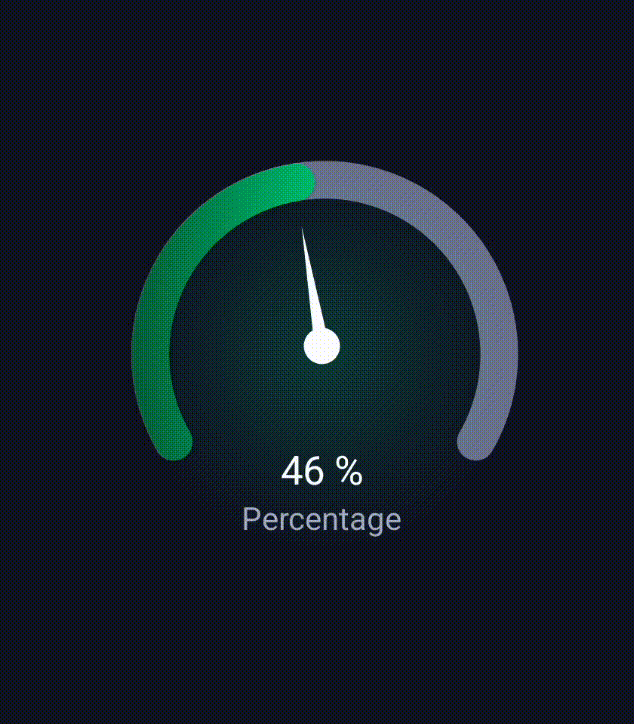

• This is what our final product will look like.
