Media3’s 1.6.0 version introduced a new module media3-ui-compose, which provides state classes linked to the player, that we can use to build compose-based user interfaces (UIs).

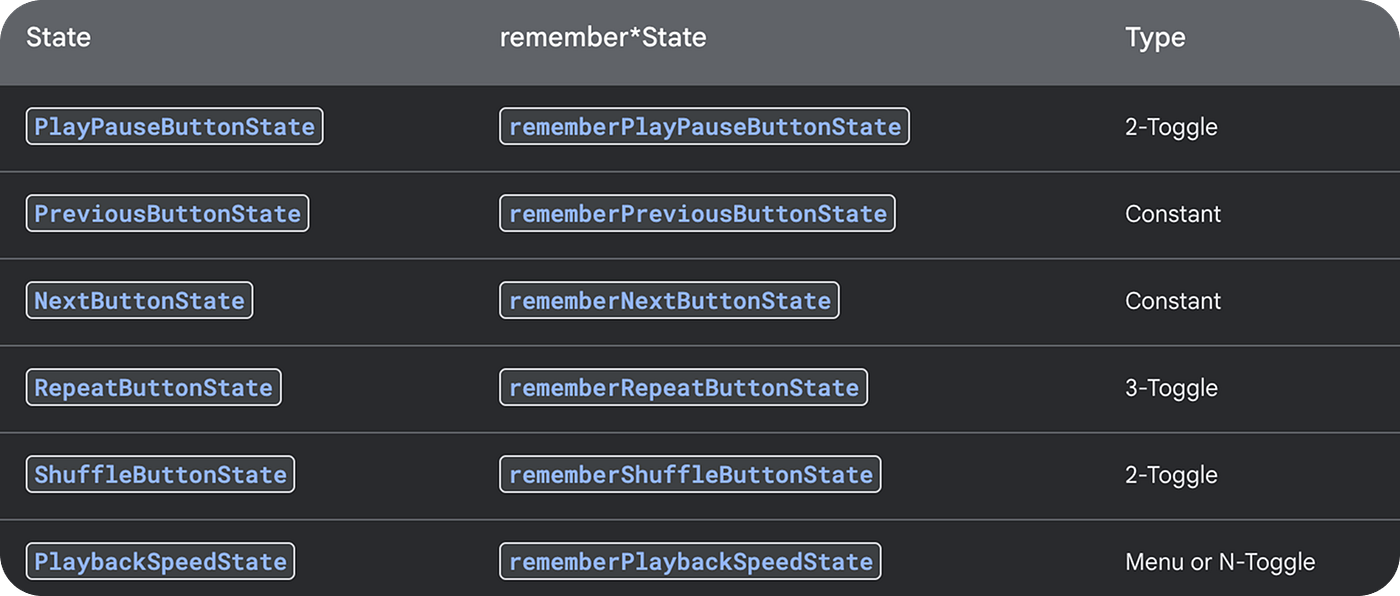

Here is a list of state classes available for developing custom UIs based on them. 👇

https://developer.android.com/media/media3/ui/compose

Current state of Android Development — Player integration

• To integrate player-related functionality in our compose-based applications, we need AndroidView + PlayerView

@Composable
fun ExoPlayerComposable(
    videoUri: String,
) {
    val context = LocalContext.current
    val lifecycleOwner by rememberUpdatedState(LocalLifecycleOwner.current)
    val lifecycle = lifecycleOwner.lifecycle

    val exoPlayer = remember {
        ExoPlayer.Builder(context)
            .build()
            .also { exoPlayer ->
                val mediaItem = MediaItem.Builder()
                    .setUri(videoUri)
                    .build()
                exoPlayer.setMediaItem(mediaItem)
                exoPlayer.prepare()
                exoPlayer.addListener()
            }
    }
    DisposableEffect(key1 = lifecycleOwner) {
        val observer = LifecycleEventObserver { _, event ->
            when (event) {
                Lifecycle.Event.ON_PAUSE -> {
                    exoPlayer.pause()
                }

                Lifecycle.Event.ON_RESUME -> {
                    exoPlayer.play()
                }

                else -> {}
            }
        }
        lifecycle.addObserver(observer)
        onDispose {
            exoPlayer.release()
            lifecycle.removeObserver(observer)
        }
    }

    AndroidView(
        factory = {
            PlayerView(context).apply {
                resizeMode = AspectRatioFrameLayout.RESIZE_MODE_FIT
                player = exoPlayer
            }
        },
        modifier = Modifier
            .fillMaxWidth()
            .aspectRatio(aspectRatio)
    )
}

Using new state classes — Implementation + Demo 🧑‍💻

• PlayerSurface — It is a Composable that represents a dedicated drawing surface for showing videos 🎥

Connects to Player, but does not contain playback controls.

• State classes — provide different states, such as play, pause, next, and previous ⏭, ⏮, ⏯

Implementation

@Composable
fun ExoPlayerComposableBasedOnNewModule(
    lifecycle: Lifecycle,
    lifecycleOwner: LifecycleOwner,
    videoUri: String,
) {
    val context = LocalContext.current
    var showControls by remember { mutableStateOf(true) }

    val exoPlayer = remember {
        ExoPlayer.Builder(context)
            .build()
            .also { exoPlayer ->
                val mediaItem = MediaItem.Builder()
                    .setUri(videoUri)
                    .build()
                exoPlayer.setMediaItem(mediaItem)
                exoPlayer.prepare()
            }
    }
    DisposableEffect(key1 = lifecycleOwner) {
        val observer = LifecycleEventObserver { _, event ->
            when (event) {
                Lifecycle.Event.ON_PAUSE -> {
                    exoPlayer.pause()
                }

                Lifecycle.Event.ON_RESUME -> {
                    exoPlayer.play()
                }

                else -> {}
            }
        }
        lifecycle.addObserver(observer)
        onDispose {
            exoPlayer.release()
            lifecycle.removeObserver(observer)
        }
    }

    Box(modifier = Modifier.fillMaxSize()) {

        PlayerSurface(player = exoPlayer)

        if (showControls) {
            PlayPauseButton(exoPlayer)
        }
    }
}

⏯️ Play/Pause button UI based on The PlayPauseButtonState

@Composable
fun PlayPauseButton(player: Player, modifier: Modifier = Modifier) {
    val state = rememberPlayPauseButtonState(player)
    val icon = if (state.showPlay) Icons.Default.PlayArrow else Icons.Default.Pause
    val contentDescription =
        if (state.showPlay) stringResource(R.string.lbl_play_state) else stringResource(
            R.string.lbl_pause_state
        )
    val graySemiTransparentBG = Color.Gray.copy(alpha = 0.1f)
    val btnModifier =
        modifier
            .size(100.dp)
            .background(graySemiTransparentBG, CircleShape)
    Row(
        modifier = modifier.fillMaxWidth(),
        horizontalArrangement = Arrangement.SpaceEvenly,
        verticalAlignment = Alignment.CenterVertically,
    ) {
        IconButton(
            onClick = state::onClick,
            modifier = btnModifier,
            enabled = state.isEnabled
        ) {
            Icon(icon, contentDescription = contentDescription)
        }
    }
}

PlayPauseButtonState — class gives us two properties, isEnabled and showPlay, that we can use in our code to update the content description and UI state of the Play/Pause button ⏯

Limitations

• This is just the beginning of first-class support for developing Media3-related features in Android applications based on compose UIs
• Currently, 🛑 Previews don’t work —

@Preview
@Composable
private fun PreviewMyVideoPlayer() {
    val player  = ExoPlayer.Builder(LocalContext.current).build().apply {
        setMediaItem(MediaItem.fromUri("uri.mp4"))
        playWhenReady = true
        prepare()
    }
    PlayPauseButton(player = player)

}

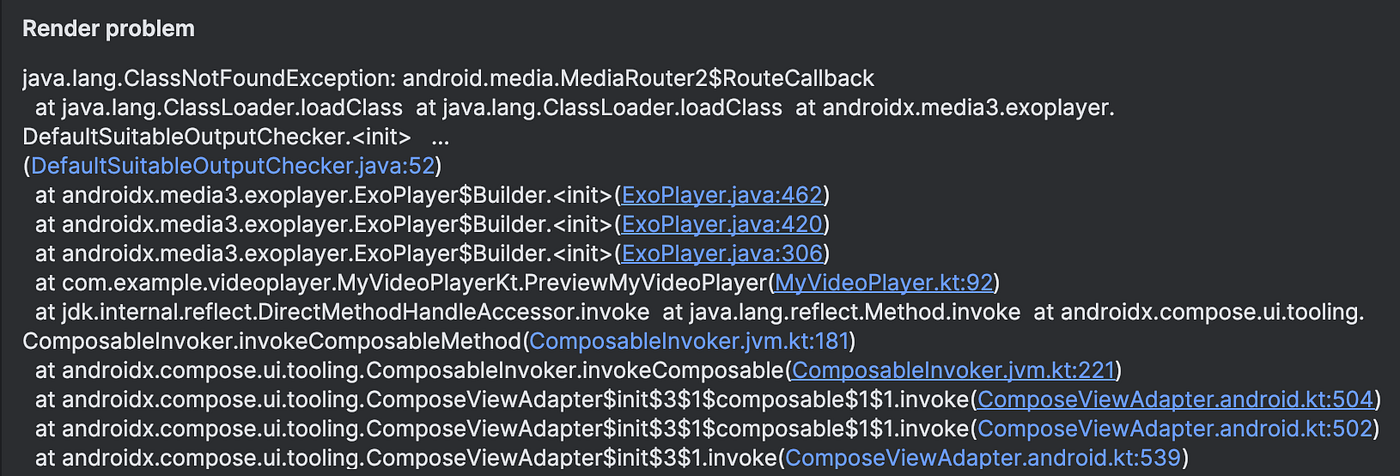

• 🛑 Player instantiation fails during previews

• So I hope we get these sorts of issues fixed in the upcoming release of this module.

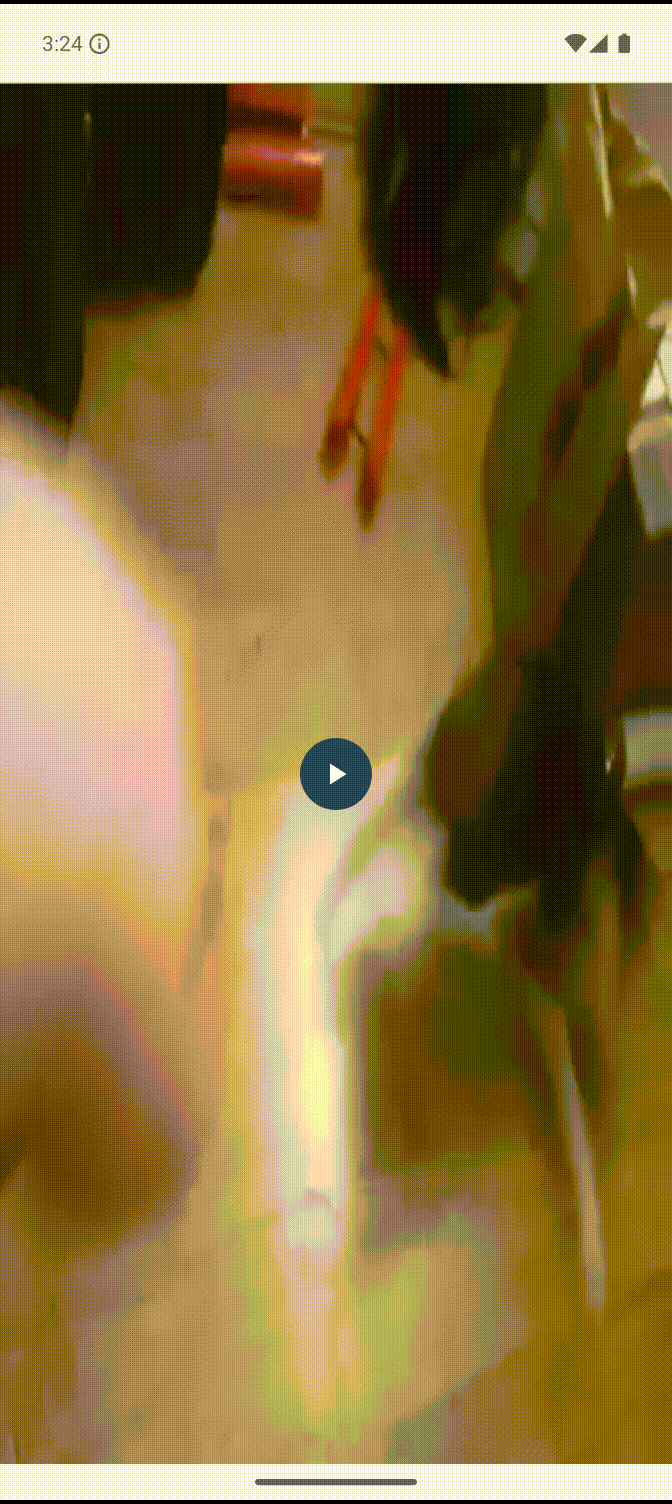

Demo 🎥

• In this article, we only covered the PlayPauseButtonState . Feel free to check the complete sample code for other states in this repository 👇
