Android Architecture Fundamentals

Introduction

Imagine Android as a sophisticated high-rise building. The foundation (kernel) supports the structure, the mechanical systems (HAL) connect utilities to different floors, the management offices (framework) coordinate services, and finally, the penthouse apartments (apps) are where residents actually live and interact. Each layer depends on the one below, creating a robust, scalable architecture.

In this comprehensive guide, we’ll explore Android’s layered architecture, understanding how each component works together to power billions of devices worldwide.

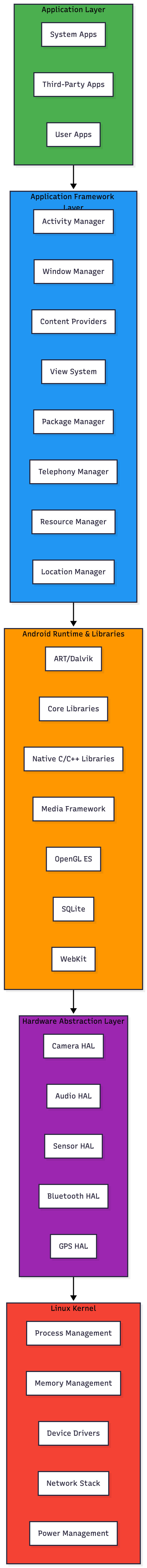

The Four-Layer Architecture Overview

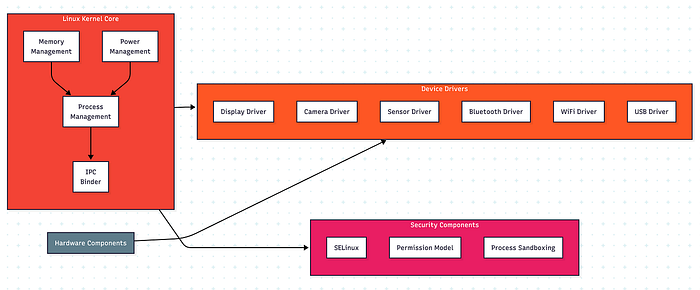

Layer 1: Linux Kernel — The Foundation

What is it?

The Linux Kernel is the core of Android OS. It’s a modified version of the Linux kernel that provides essential system services and acts as an abstraction layer between hardware and software.

Key Responsibilities

1. Process Management: Scheduling and managing process lifecycles
2. Memory Management: Allocating and deallocating memory for processes
3. Device Drivers: Interfacing with hardware components (display, camera, sensors)
4. Security: Enforcing permissions and sandboxing applications
5. Power Management: Managing battery usage and power states
6. Network Stack: Handling network communications

Think of the kernel as the building’s foundation and utility infrastructure. Just as a building’s foundation supports everything above it and utilities (water, electricity, sewage) are managed by the infrastructure, the kernel manages core resources that everything else depends on.

#include <linux/module.h>
#include <linux/kernel.h>
#include <linux/init.h>
#include <linux/fs.h>
#include <linux/device.h>
#include <linux/uaccess.h>

#define DEVICE_NAME "android_display"
#define CLASS_NAME "display"

MODULE_LICENSE("GPL");
MODULE_AUTHOR("Android System");
MODULE_DESCRIPTION("Simple Android Display Driver");

static int major_number;
static struct class* display_class = NULL;
static struct device* display_device = NULL;

// Function prototypes
static int dev_open(struct inode*, struct file*);
static int dev_release(struct inode*, struct file*);
static ssize_t dev_write(struct file*, const char*, size_t, loff_t*);

// Initialize the driver
static int __init display_driver_init(void) {
printk(KERN_INFO "DisplayDriver: Initializing\n");
...
printk(KERN_INFO "DisplayDriver: Registered correctly\n");
return 0;
}

module_init(display_driver_init);
module_exit(display_driver_exit);

Layer 2: Hardware Abstraction Layer (HAL)

What is it?

The HAL provides a standard interface between Android’s framework and hardware-specific drivers. It allows Android to be hardware-agnostic, meaning the same framework code can work with different hardware implementations.

Why HAL Exists

The HAL solves a critical problem: hardware vendors need proprietary drivers, but Android is open-source. HAL creates a boundary where vendors can implement their drivers without exposing proprietary code to the open-source framework.

Think of HAL as a universal adapter system. Just as a universal power adapter lets you plug any device into any outlet worldwide, HAL lets Android’s framework communicate with any hardware, regardless of the manufacturer.

// Example usage
int main() {
printf(”=== Camera HAL Demo ===\n\n”);

camera_device_t *camera = create_camera_device();
camera_info_t info;

camera->get_camera_info(camera, &info);
printf(”Camera facing: %d, orientation: %d\n\n”,
info.facing, info.orientation);

camera->open_camera(camera);
camera->set_parameters(camera, “resolution=1920x1080;flash=auto”);
camera->start_preview(camera);
camera->take_picture(camera);
camera->close_camera(camera);

free(camera->priv);
free(camera);

return 0;
}

Key HAL Components

Layer 3: Application Framework

What is it?

The Application Framework is a rich set of Java/Kotlin APIs that developers use to build applications. It provides high-level building blocks and services that handle common tasks.

Think of the framework as a comprehensive toolbox and management office. Just as a building’s management handles utilities, security, and maintenance so residents don’t have to, the framework manages system services so app developers can focus on their app’s unique features.

Key Framework Components

1. Activity Manager

Manages the lifecycle of activities (screens) and the back stack.

2. Window Manager

Controls window placement, animation, and input events.

3. Content Providers

Enable apps to share data securely (contacts, media, etc.).

4. Package Manager

Handles app installation, updates, and permissions.

5. View System

The UI toolkit for building user interfaces.

override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)

// Initialize Framework Services
initializeServices()

// Demonstrate various framework features
demonstratePackageManager()
demonstrateSensorManager()
demonstrateConnectivityManager()
demonstrateLocationManager()
demonstrateTelephonyManager()
demonstrateNotificationManager()
demonstrateBluetoothManager()
}

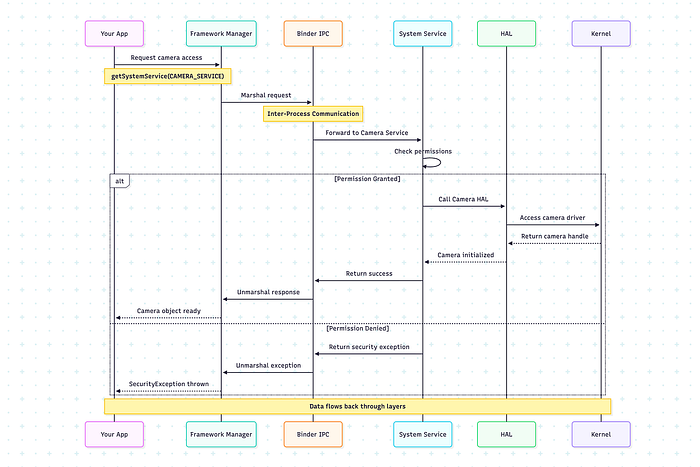

Framework Service Communication Flow

Layer 4: Application Layer

What is it?

The Application Layer is where all apps live — both system apps (Phone, Contacts, Settings) and third-party apps from developers. This is the layer users directly interact with.

Types of Applications

1. System Apps: Pre-installed apps (Phone, Messages, Camera)
2. Third-Party Apps: Installed from Play Store or other sources
3. Background Services: Apps running without UI (music players, sync services)

Applications are like apartments in the building. Each apartment (app) is isolated from others for security, but can request access to building services (framework) through proper channels, and ultimately depends on the building’s foundation (kernel).

Application Components

override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_weather)

// Initialize ViewModel
viewModel = ViewModelProvider(this)[WeatherViewModel::class.java]

// Get LocationManager from Framework
locationManager = getSystemService(Context.LOCATION_SERVICE) as LocationManager

// Check permissions (Framework permission system)
checkLocationPermission()

// Observe weather data
observeWeatherData()
}

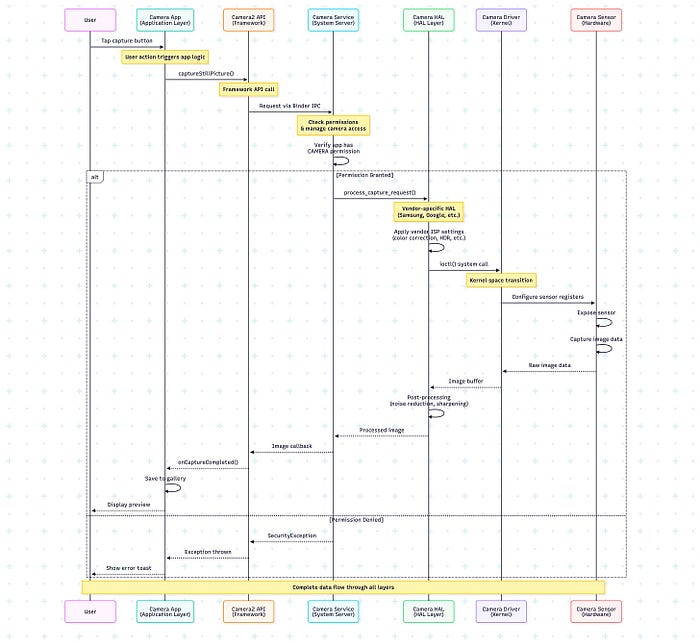

Let’s trace a real-world scenario: Taking a photo with the camera app.

Step-by-Step Breakdown

1. Application Layer: User taps button → Camera app calls Camera2 API
2. Framework Layer: CameraManager validates permissions, manages camera lifecycle
3. HAL Layer: Vendor-specific camera HAL applies image processing algorithms
4. Kernel Layer: Camera driver communicates with sensor hardware via I2C/SPI
5. Hardware: Physical camera sensor captures light, converts to digital data
6. Return Path: Data flows back up through all layers to the app

Inter-Process Communication (IPC): Binder

What is Binder?

Binder is Android’s custom IPC (Inter-Process Communication) mechanism. It’s how apps communicate with system services across process boundaries.

Why Binder?

• Security: Each app runs in its own process with separate memory
• Efficiency: Fast communication between processes
• Reference Counting: Automatic cleanup of shared resources

Android Runtime (ART)

What is ART?

ART (Android Runtime) is the managed runtime that executes app code. It replaced Dalvik in Android 5.0.

Key Features

1. AOT Compilation: Apps compiled to native code during installation
2. JIT Compilation: Just-in-time compilation for faster execution
3. Garbage Collection: Automatic memory management
4. DEX Format: Optimized bytecode format for mobile devices

Press enter or click to view image in full size

class Calculator {
    fun add(a: Int, b: Int): Int {
        return a + b
    }

    fun multiply(a: Int, b: Int): Int {
        return a * b
    }
}

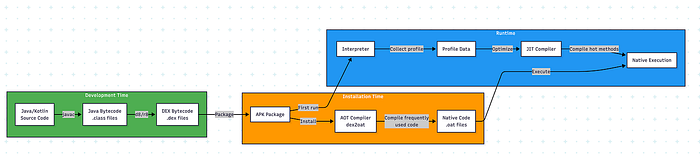

COMPILATION PROCESS:1. Kotlin Compiler (kotlinc) converts to Java Bytecode:
- Creates .class files
- Standard JVM bytecode instructions

2. D8/R8 Compiler converts to DEX:
- Optimizes for mobile (smaller file size)
- Converts to Dalvik instructions
- Creates .dex fileDEX BYTECODE (simplified representation):class Calculator {
method add(II)I {
// I = integer type
0000: iget v0, p1 // Get parameter 1 into register v0
0002: iget v1, p2 // Get parameter 2 into register v1
0004: add-int v2, v0, v1 // Add v0 and v1, store in v2
0006: return v2 // Return value in v2
}

method multiply(II)I {
0000: iget v0, p1
0002: iget v1, p2
0004: mul-int v2, v0, v1 // Multiply instead of add
0006: return v2
}
}fun main() {
println(”=== Android Runtime (ART) Demo ===\n”)

// Example APK analysis
println(”Note: To analyze a real APK, provide the path:”)
println(”analyzeAPK(\”/path/to/app.apk\”)\n”)

// Demonstrate compilation
val compiler = ARTCompiler()
compiler.demonstrateCompilation()
compiler.compareAOTvsJIT()

// Demonstrate memory management
val memoryDemo = ARTMemoryDemo()
memoryDemo.demonstrateGarbageCollection()
}

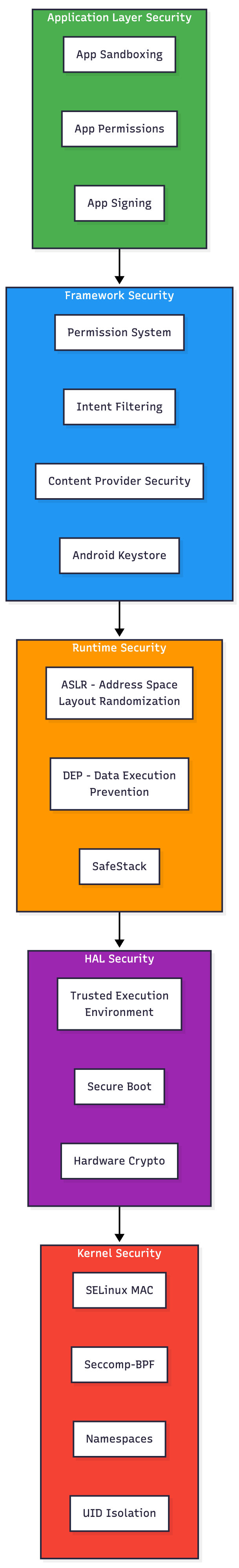

Security Architecture Across Layers

Android’s security is implemented at every layer:

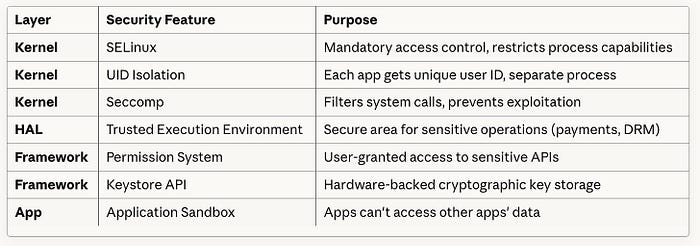

Security Features by Layer

Performance Optimization Across Layers

Complete System Architecture Diagram
