During a recent security research project, I had the opportunity to evaluate the resilience of modern Android security architectures against kernel-level compromise. My objective was to understand the practical limitations of user-space protections — such as SELinux policies and Rust memory safety — when the underlying hardware trust chain is broken.

This research led me to explore APatch, a kernel-based root solution that differs significantly from traditional methods like Magisk. Unlike user-space rooting, APatch allows for the injection of Kernel Patch Modules (.kpm) directly into the running kernel (Ring 0).

This article details my findings on how kernel-level instrumentation can effectively bypass application-layer security assumptions, illustrating why the locked bootloader remains the non-negotiable root of trust for high-fidelity applications.

The Architecture of Trust

To understand the vulnerability, we must first look at the defense. Android’s security model is a layered defense system designed to isolate processes and prevent unauthorized access.

• Rust in the Kernel: Google’s adoption of Rust minimizes memory safety bugs (buffer overflows, use-after-free).
• SELinux: Mandatory Access Control ensures that even processes with root privileges (uid 0) are restricted by strict policies.
• Play Integrity API: Verifies that the software environment has not been tampered with.

However, these defenses rely on a foundational axiom: The Kernel is trustworthy.

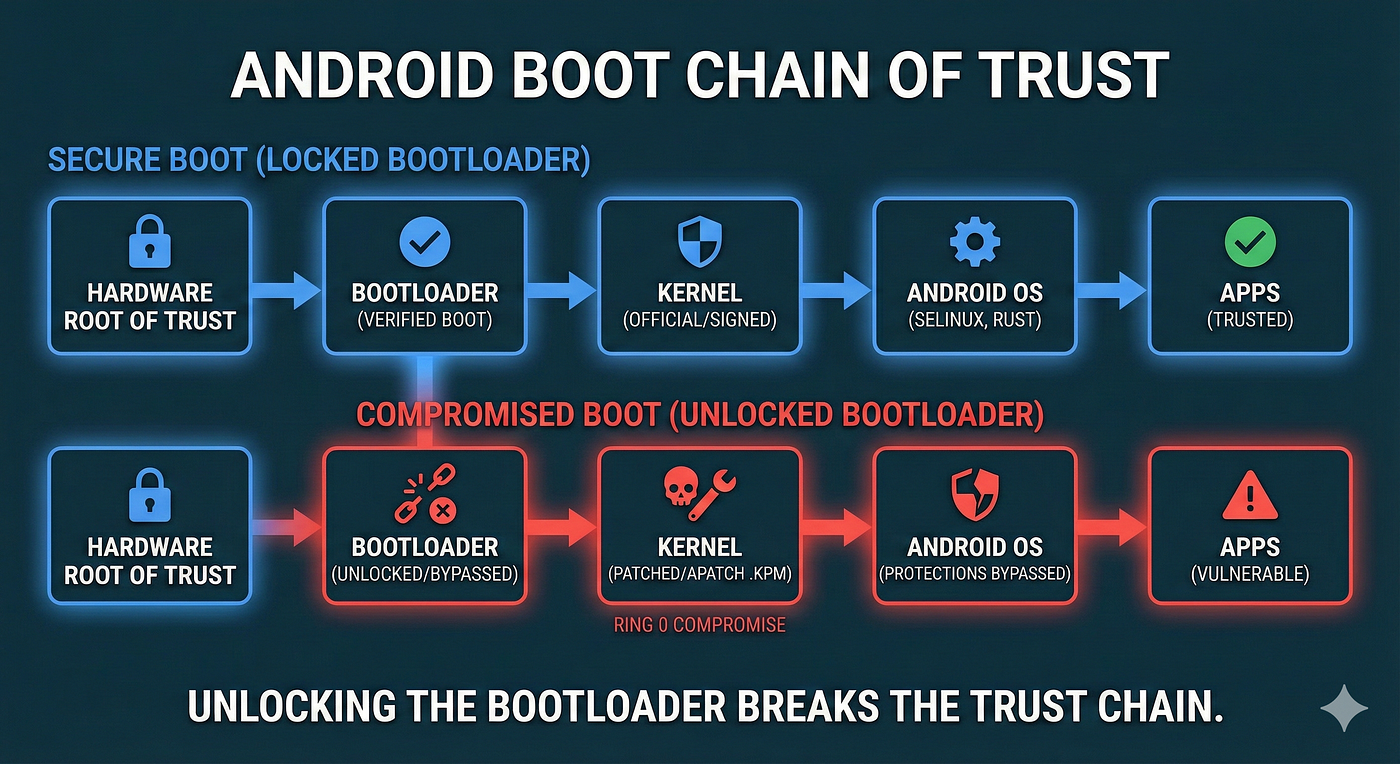

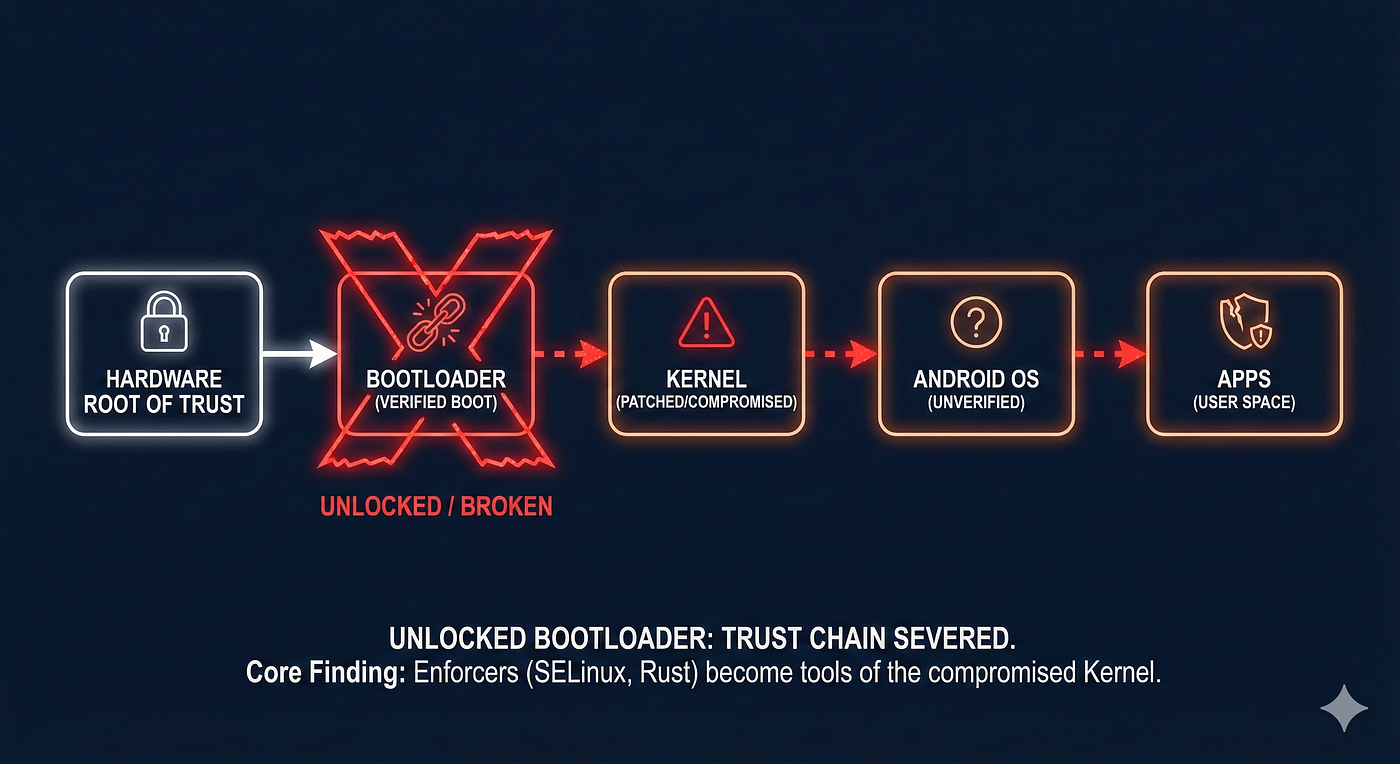

This trust is established via the Chain of Trust. The Bootloader verifies the cryptographic signature of the Boot Image (Kernel) before loading it. If the bootloader is unlocked, this verification is disabled.

Kernel-Assisted Evasion and “Systemless” Root

In a standard environment, modifying the system partition triggers a failure in integrity checks. However, APatch operates as a “headless” or “systemless” implementation within Ring 0.

Because the patch resides in the kernel, it can intercept system calls made by detection agents (like Google Play Services). When an agent queries the status of the bootloader or the integrity of the system, the patched kernel sanitizes the response.

The Implication: This effectively “gaslights” the operating system. The user space — including banking apps and enterprise MDM solutions — operates under the false assumption that the environment is secure, because the kernel actively hides the compromise.

Technical Proof of Concept — The Camera Spy Module

To demonstrate the extent of control granted by kernel-level access, I developed a custom Kernel Patch Module (KPM).

Objective: The goal was to intercept hardware events at the driver level, bypassing all user-space privacy indicators (such as the “Green Dot” in Android 12+). Specifically, I configured the module to detect camera initialization and trigger a physical “Volume Down” keypress as a signal.

The Methodology

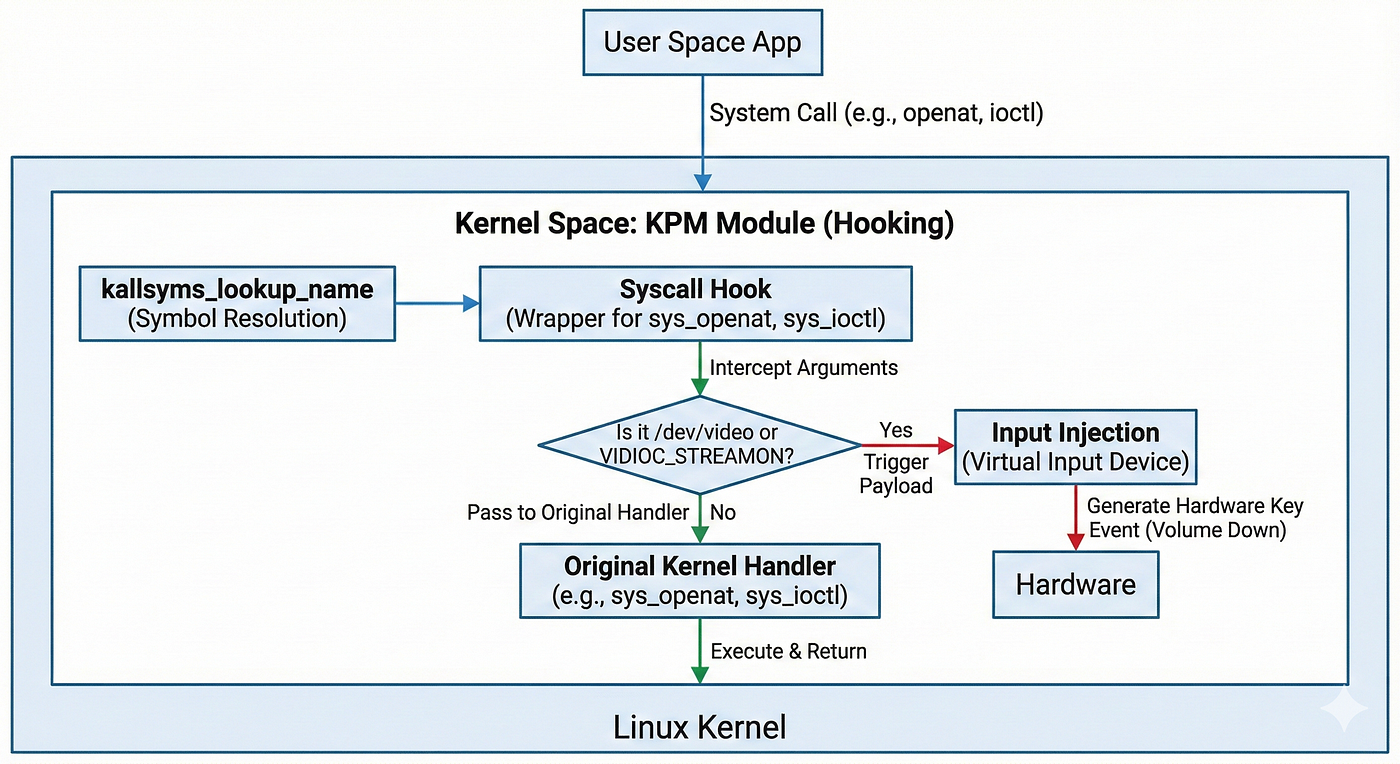

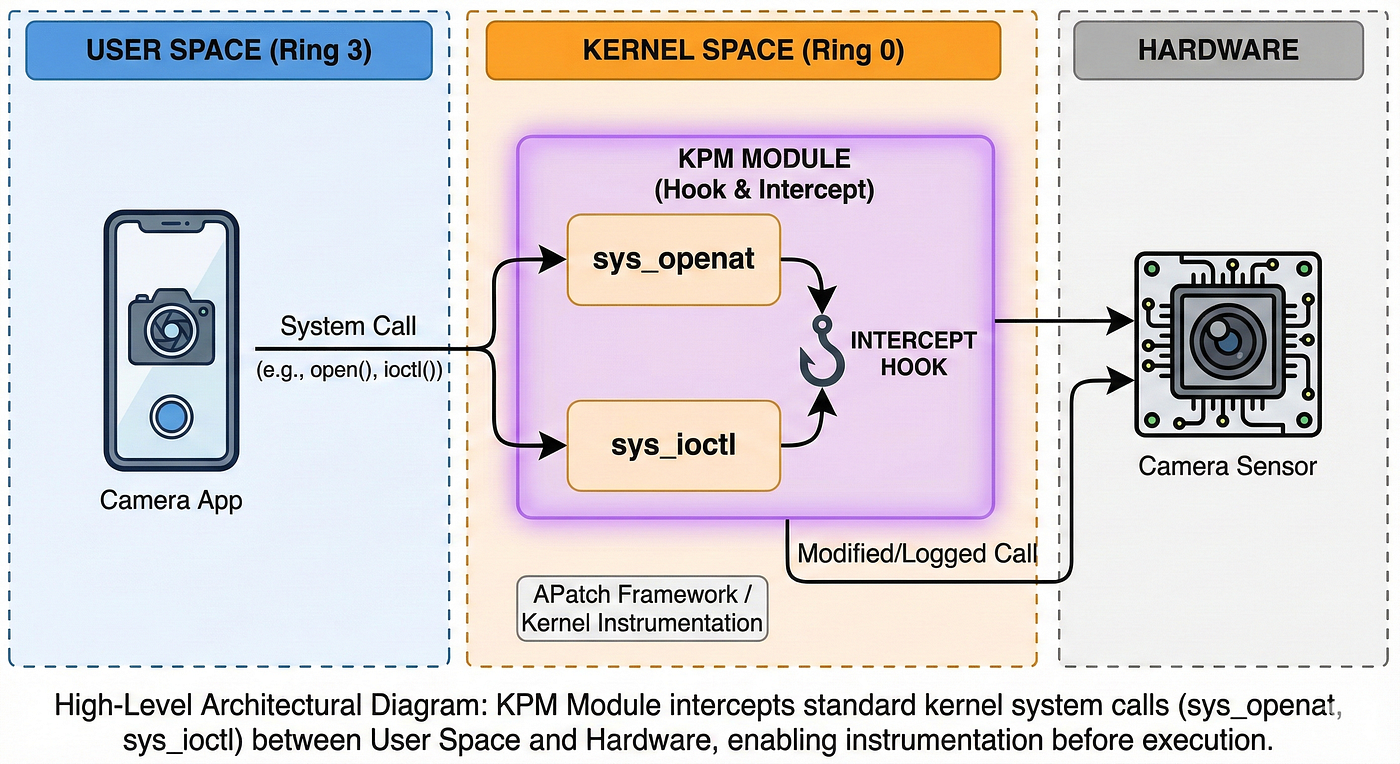

The module operates by dynamically resolving kernel symbols and hooking into standard Linux system calls.

1. Syscall Hooking: Wrapping these functions to inspect arguments before passing them to the original handlers.
2. Input Injection: Allocating a virtual input device to generate hardware key events.

Hooking openat

The following snippet demonstrates how the module intercepts file access. By monitoring calls to openat, we can identify when an application requests access to video devices (/dev/videoX), occurring before the Android permission prompt is fully processed.

/* Hook: Intercepting File Open Requests */
static void before_openat_hook(hook_fargs1_t *args, void *udata)
{
    const struct pt_regs *regs = (const struct pt_regs *)args->arg0;

    /* [Snippet] Copy filename from user space to kernel buffer */
    /* specific driver heuristics */
    if (str_starts_with(buf, "/dev/video") || strstr(buf, "camera-daemon")) {

        /* Log detection and trigger payload */
        logkd("[KPM-AUDIT] Camera driver access detected: %s\n", buf);
        kp_trigger_volume_down();
    }
}

Hooking ioctl

To achieve higher granularity, I intercepted the ioctl syscall, specifically listening for the V4L2 VIDIOC_STREAMON command. This confirms not just that the camera is open, but that it is actively streaming.

static void before_ioctl_hook(hook_fargs1_t *args, void *udata)
{
    // ... registers parsing ...
    if (cmd == VIDIOC_STREAMON) {
        /* Confirmed hardware streaming start */
        kp_trigger_volume_down();
    }
}

Security Implications: Environment Manipulation

While the Proof of Concept triggered a benign volume key event, the project revealed severe implications for high-fidelity security applications. The ability to intercept ioctl and openat allows for Man-in-the-Middle (MitM) attacks within the kernel itself.

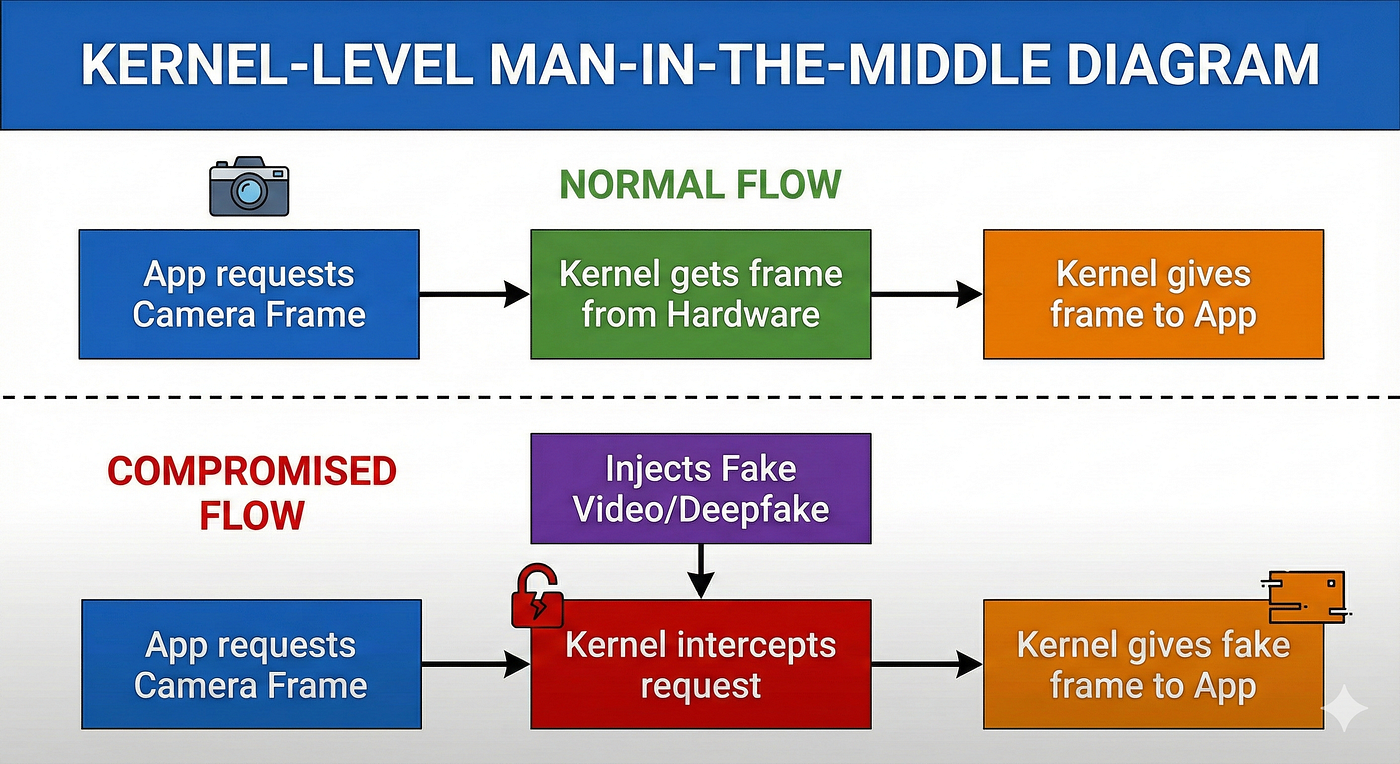

Camera/Biometric Injection:

• By intercepting the buffer exchange in ioctl, a malicious module could replace live camera feed data with pre-recorded footage. This bypasses “liveness” checks used by e-KYC and authentication systems, as the application receives the data directly from the “driver.”

GPS/Sensor Spoofing:

• Hooking GNSS drivers allows for the injection of arbitrary location data. Unlike the Android “Mock Location” developer setting (which apps can detect), driver-level spoofing is indistinguishable from actual hardware readings.
• Bypassing Privacy Indicators:
• Android’s privacy indicators (microphone/camera icons) rely on callbacks from the hardware abstraction layer. A kernel module can suppress these callbacks or simply read the data before the OS is notified.

Conclusion

This research project underscores that the security of the Android platform is binary: it relies entirely on the integrity of the boot chain.

Tools like APatch demonstrate the immense flexibility of the Linux kernel, which is beneficial for development and enthusiasts. However, for security architects, it serves as a demonstration that User Space protections cannot compensate for a compromised Kernel Space.

If the bootloader is unlocked, we must assume the kernel can be instrumented to misreport the state of the device. Consequently, for applications requiring high assurance (Banking, GovTech, Enterprise), enforcing a locked bootloader is not just a policy preference — it is a technical necessity.
