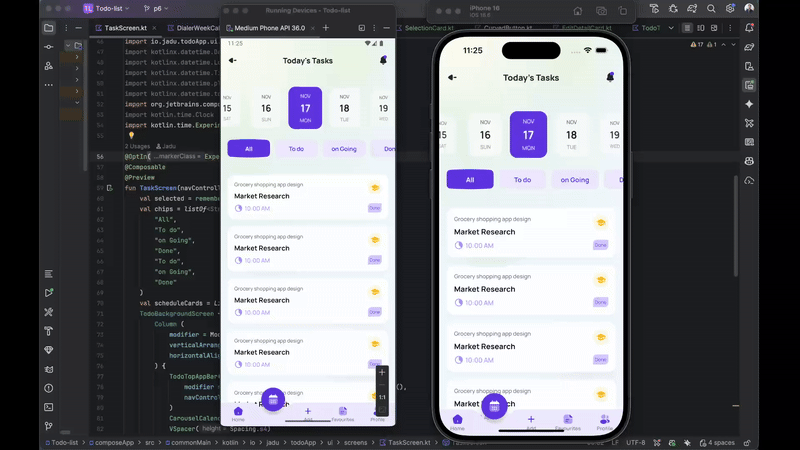

Animated Date Carousel, Demo

This UI was Inspired by a Figma design

Hey Everyone,
Today we are going to learn how to build this beautiful Compose Animated Date Carousel for Android and IOS, Built using Jetpack compose and kotlinx-datetime , and Curiosity 🙂 .

Supported platform — Compose Multiplatform

→ Get the Current Time

val currentTime = Clock.System.now()
// Output: 2025-11-15T14:30:45.123456789Z

val today = currentTime.toLocalDateTime(TimeZone.currentSystemDefault()).date
// Output: 2025-11-17

• Set the start and End Dates

// Start from 1st January and ends 31st jan
val startDate = LocalDate(year, 1, 1)
val endDate = LocalDate(year, 12, 31)

• Generate Full year date list

/** generateSequence takes a genric type,
  * we are passing it a type of LocalDate
  * and adding each day, until it reaches the last date
*/

val dates = remember {
    generateSequence(startDate) { date ->
        val next = date.plus(1, DateTimeUnit.DAY)
        if (next <= endDate) next else null
    }.toList()
}

This will generate and give the list of all the dates from Jan 1st to Dec 31st, thus we have completed the step 1 here.

→ Parent

// Taking BoxWithContstraint, in order to get the screenWidth using `maxWidth`

BoxWithConstraints(
    modifier = Modifier.fillMaxWidth()
) {
    DialerWeekCalendar(
        dates = dates,
        selectedDate = selectedDate,
        onDateSelected = { selectedDate = it },
        maxWidth = maxWidth
    )
}

→ DialerWeekCalendar

/** This will Auto-scroll to center the selected date
  * When the screen first loads, `scrollToItem` is used which scrolls -
  * without animating, thus didn't takes time to scroll and reach
  * `animateScrollToItem` animates when you click on any date to center
*/
LaunchedEffect(selectedDate) {
    val selectedIndex = dates.indexOf(selectedDate)
    if (selectedIndex != -1) {
        if (isInitialLoad) {
            listState.scrollToItem(index = selectedIndex)
            isInitialLoad = false
        } else {
            // Animate scroll for subsequent selections
            listState.animateScrollToItem(index = selectedIndex)
        }
    }
}

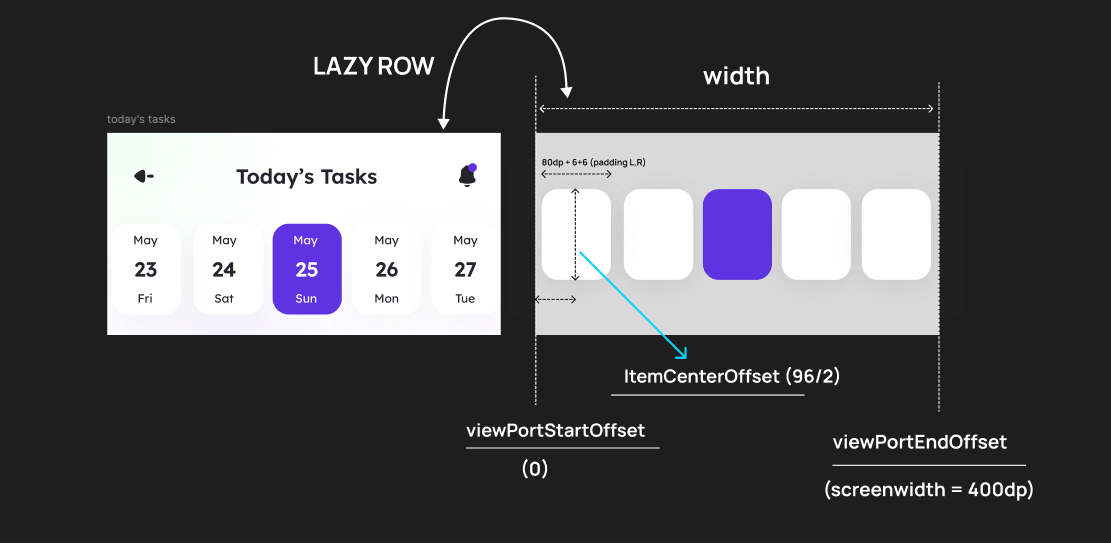

• Lazy Row

/** content padding is used here to align the first Date (1st Jan)
  * and 31st Dec, in the center, as there are no elements before and after
  * it, respectively, giving it the
  * `center - half the width of item (46.dp)`
*/

LazyRow(
    modifier = modifier
        .fillMaxWidth()
        .height(Spacing.s30),
    state = listState,
    horizontalArrangement = Arrangement.spacedBy(Spacing.s3),
    verticalAlignment = Alignment.CenterVertically,
    contentPadding = PaddingValues(horizontal = (maxWidth / 2) - 46.dp)
)

Itemsize = item width(80.dp) + padding (L,R) (12.dp)= 96.dp

• Items loop

/**
 * We loop through the dates list using the index.
 * Each index gives one date that we will render inside the LazyRow.
 */
items(dates.size) { index ->
    val date = dates[index]

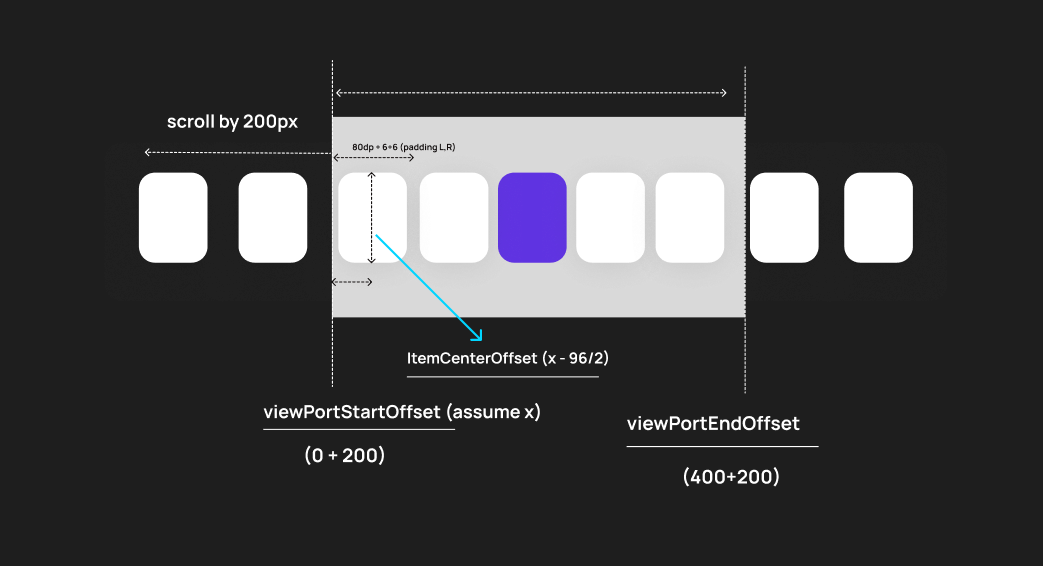

• Get layout info and viewport center

/**
* Get the layout information from the LazyListState.
* From this, calculate the center of the visible area.
* This center point is used to decide how much the item should scale,
* rotate, or fade based on its distance from this center.
*/

val layoutInfo = listState.layoutInfo
val viewportCenter = layoutInfo.viewportStartOffset +
            (layoutInfo.viewportEndOffset - layoutInfo.viewportStartOffset) / 2

Offset will change, based on the amount it scrolled

• Find item info and item centre

/**
* Try to find the item information for this index.
* If the item is visible, we can read its pixel offset and size.
* From that, we calculate the item center.
* If the item is not visible, itemInfo is null.
*/

val itemInfo = layoutInfo.visibleItemsInfo.find { it.index == index }
val itemCenter = itemInfo?.let { it.offset + it.size / 2 } ?: 0

• Distance from center

/**
* Measure how far this item is from the center of the viewport.
* Convert it into a 0 to 1 range by dividing with viewport width.
* If the item is not visible, treat the distance as 1.
*/
val distanceFromCenter = if (itemInfo != null) {
    abs(viewportCenter - itemCenter).toFloat() / layoutInfo.viewportSize.width
} else {
    1f
}

• Visual scale, rotation, and alpha

/**
* Based on the distance value, compute scale, rotation, and transparency.
* Items closer to the center get bigger, rotate less, and stay more visible.
* Items farther from the center shrink, rotate more, and fade out.
*/
val scale = (1f - (distanceFromCenter * 0.3f)).coerceIn(0.7f, 1f)
val rotationY = (distanceFromCenter * 40f).coerceAtMost(45f)
val alpha = (1f - (distanceFromCenter * 0.5f)).coerceIn(0.5f, 1f)

• Box with graphicsLayer effects

/**
 * The Box represents each date card.
 * We apply scale, rotation, and alpha using graphicsLayer.
 * Rotation direction changes based on which side of the center it is on.
 * The card changes background when it is the selected date.
 * Width and height create the pill shaped card.
 */
Box(
    modifier = Modifier
        .graphicsLayer {
            scaleX = scale
            scaleY = scale
            this.rotationY =
                if (itemCenter < viewportCenter) rotationY else -rotationY
            this.alpha = alpha
        }
        .clip(RoundedCornerShape(Spacing.s4))
        .background(
            if (date == selectedDate) TodoColors.Primary.color
            else TodoColors.Light.color
        )
        .clickable {
            onDateSelected(date)
        }
        .width(Spacing.s20)
        .height(Spacing.s25),
    contentAlignment = Alignment.Center
) {}

• Column with month, day, and weekday

/**
 * Display the month (short form), day number, and weekday (short form).
 * Colors change when the date is selected.
 */
Column(
    horizontalAlignment = Alignment.CenterHorizontally,
    verticalArrangement = Arrangement.Center
) {
    Text(
        text = date.month.name.take(3),
        style = BodySmall().copy(
            color = if (date == selectedDate)
                Color.White.copy(alpha = 0.8f)
            else Color.DarkGray
        )
    )
    VSpacer(Spacing.s1)
    Text(
        text = date.day.toString(),
        style = H3TextStyle().copy(
            fontWeight = FontWeight.Bold,
            color = if (date == selectedDate) Color.White else Color.Black
        ),
    )
    VSpacer(Spacing.s1)
    Text(
        text = date.dayOfWeek.name.take(3),
        style = BodySmall().copy(
            color = if (date == selectedDate)
                Color.White.copy(alpha = 0.8f)
            else Color.Gray
        ),
    )
}

That’s All,
Explore the Full Code here : Gist

Enjoy
