This is Part 2 of my Android Touch System series. Part 1 does a deep dive into touch functions (onDispatchTouchEvent(), onInterceptTouchEvent(), onTouchEvent()) and how they affect the way touch events flow through the views hierarchy. This post will show visual examples of how these functions work.

The visualizations are based on a sample app I made with subclasses of Activity, FrameLayout, ScrollView, and View that print a log message whenever the functions are called. You can find it on Github and play around with your own implementations of the touch functions.

Here’s a quick recap of the functions covered inPart 1:

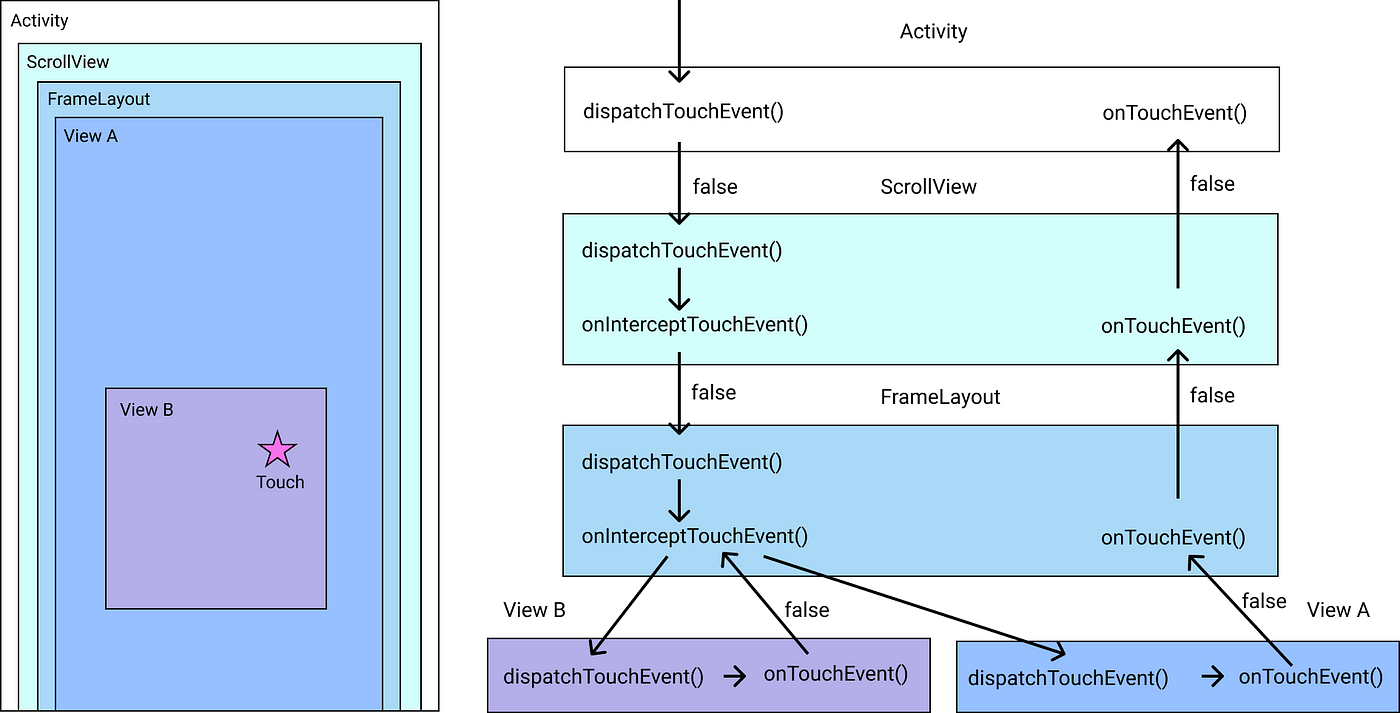

Scenario 1

Tap on View B. None of the views consume it

Let’s revisit the visualization from Part 1. Note that View B is added to after View A, so its dispatchTouchEvent() gets called first; ViewGroups pass touch events to their children in reverse order in which they were added.

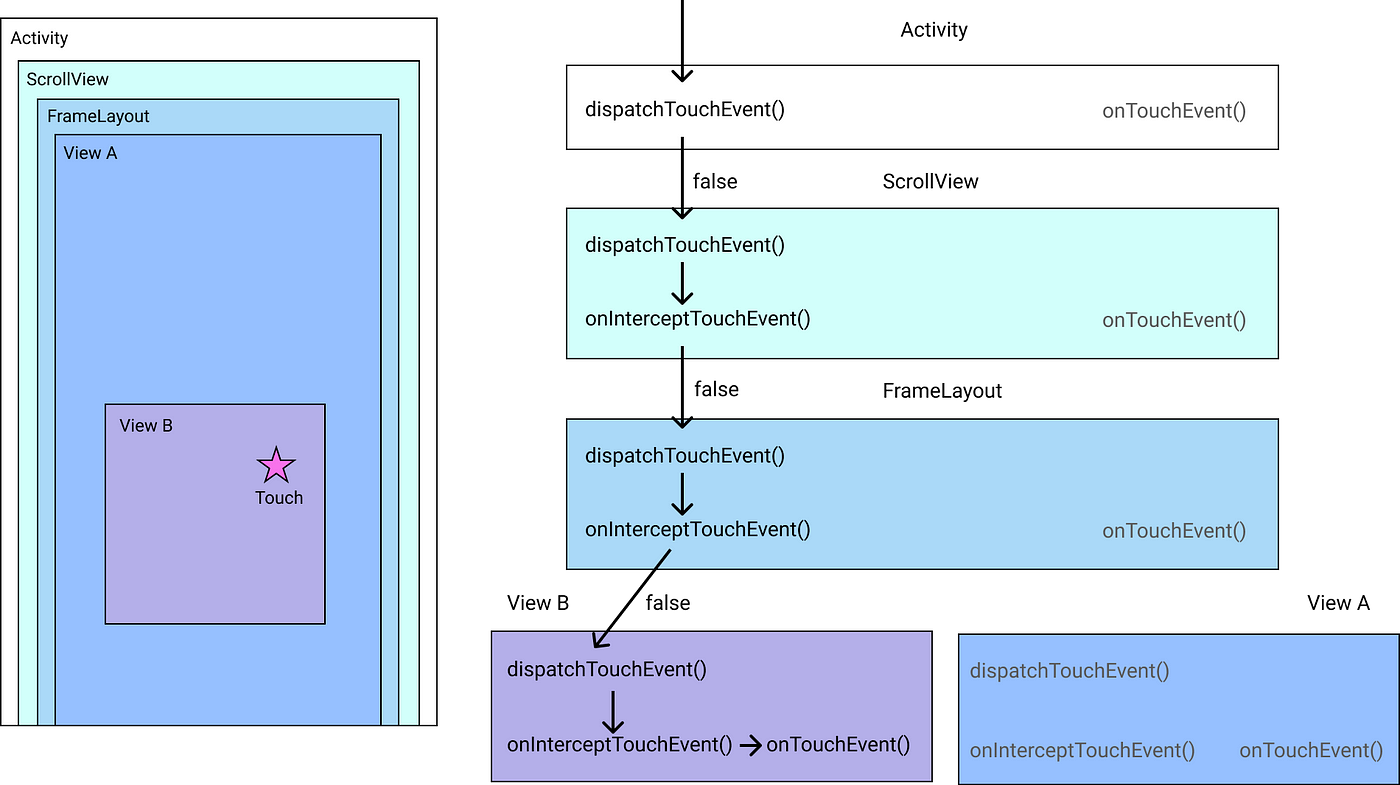

Scenario 2

Tap on View B. View B’s onTouchEvent() returns true

Since none of View B’s ancestors intercept taps, the event is passed all the way to its onTouchEvent(). Since it returns true, the event stops there and none of the other views’ onTouchEvent()s gets called.

Scenario 3

Tap on View A. None of the views consume it

This is similar to Scenario 1, except since the touch isn’t inside View B’s bounds, FrameLayout passes it to View A directly.

Job Offers

Job Offers


    Android Software Engineer (f/m/d)

    Paradox Cat GmbH
    Munich
    • Full Time
    apply now

    Mobile Engineer

    OLX Group
    Remote, Portugal, Spain, Romania, Poland
    • Full Time
    apply now

    Senior Android Software Engineer (f/m/d)

    Paradox Cat GmbH
    Munich
    • Full Time
    apply now

OUR VIDEO RECOMMENDATION

, ,

From Scoped Storage to Photo Picker: Everything to know about Storage

Persistence is a core element of every mobile app. Android provides different APIs to access or expose files with different tradeoffs.
Watch Video

From Scoped Storage to Photo Picker: Everything to know about Storage

Yacine Rezgui
Android developer advocate
Google

From Scoped Storage to Photo Picker: Everything to know about Storage

Yacine Rezgui
Android developer ad ...
Google

From Scoped Storage to Photo Picker: Everything to know about Storage

Yacine Rezgui
Android developer advocat ...
Google

Jobs

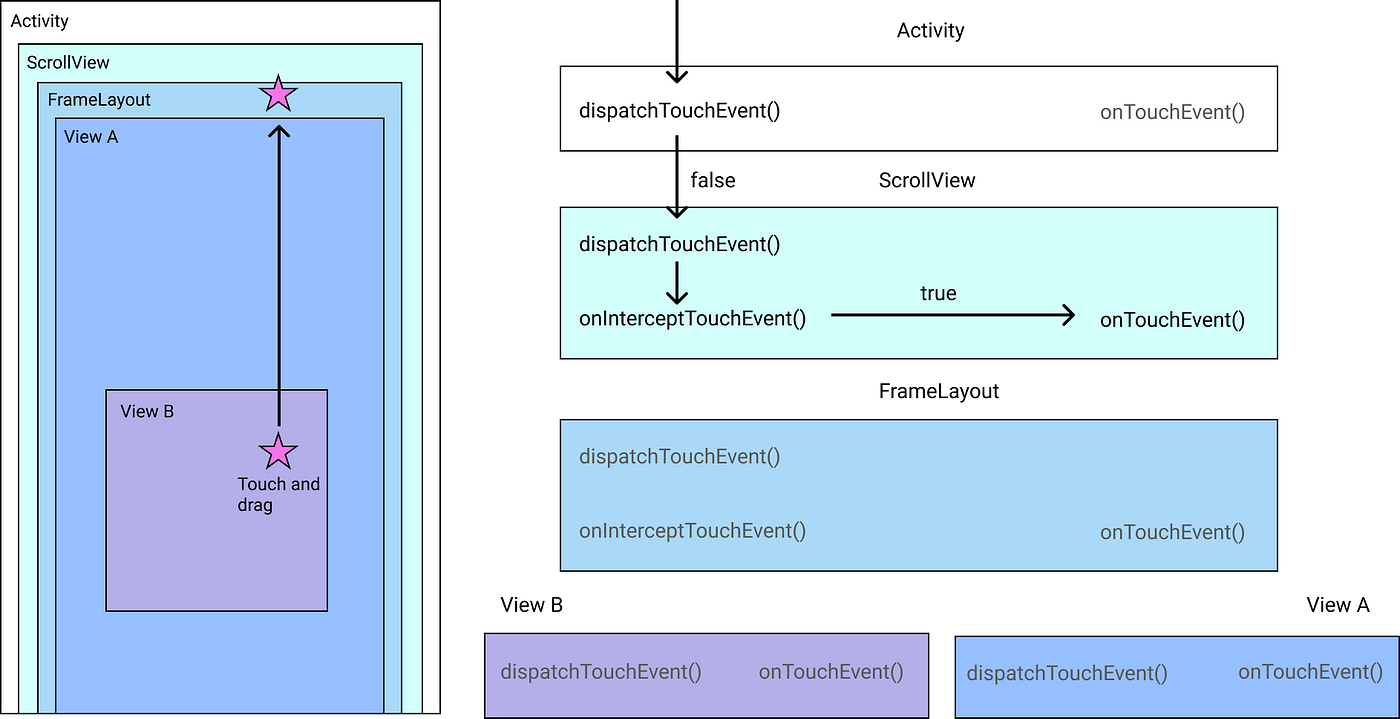

Scenario 4

Scroll on View B. ScrollView intercepts it and shows scrolling

ScrollView’s onInterceptTouchEvent() returns true, so its child views aren’t notified of the event. ScrollView’s onTouchEvent() is called. It also returns true, so the event stops there.

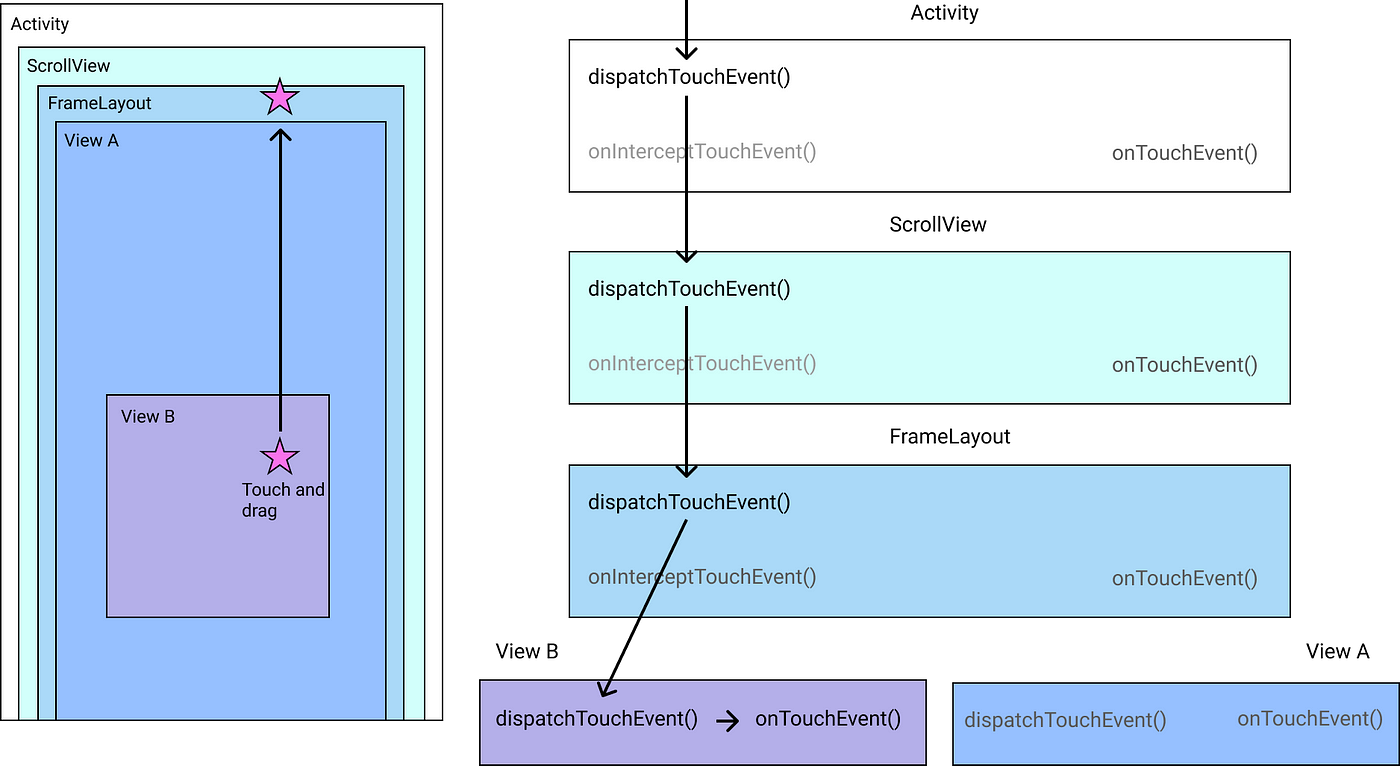

Scenario 5

Scroll on View B. View B overrides dispatchTouchEvent() and calls parent.disallowTouchEvent(true). View B’s onTouchEvent() also returns true. No scrolling occurs.

All of View B’s ancestors’ onInterceptTouchEvent()s are ignored, and the event stops at View B’s onTouchEvent(). ScrollView never scrolls.

Scenario 6

Scroll on View B. View B overrides dispatchTouchEvent() and calls parent.disallowTouchEvent(true). View B’s onTouchEvent() returns false. ScrollView scrolls.

All of View B’s ancestors’ onInterceptTouchEvent()s are ignored, but since View B’s onTouchEvent() doesn’t handle the event, it gets passed up to the ancestors’ onTouchEvent()s. ScrollView’s onTouchEvent() is called and returns true, signifying it handled the event. We see a scroll and the event stops there.

References

The main resources I used for this article are:

Here’s the link to Part 1: Touch Functions and the View Hierarchy again. I plan to publish two more articles in this series: Part 3 will cover listeners (GestureDetector, OnClickListener, OnTouchListener, etc) and Part 4 will look at touch in Jetpack Compose. Stay tuned!

Thanks to Russell and Kelvin for their valuable editing and feedback ❤️
