Lets build some Pipelines.
https://unsplash.com/photos/9AxFJaNySB8
Welcome to the last article in the series on mastering CI/CD from scratch for android devs. If you haven’t read the first two article, I recommend starting there before continuing with this one.
CI/CD for Android Devs II | GitHub Actions Masterclass
As a mobile developer, one of your main goals is to create high-quality apps that are reliable, efficient, and easy to maintain. One of the best ways to achieve this goal is by automating your development processes, such as building, testing, and deploying your apps. In this article, we will discuss why automating processes is important in mobile development, and we will show you how to use GitHub Actions to automate the pipeline for your Android apps.
One of the main benefits of automating your development processes is that it can save you time and effort. By using tools and scripts to automate repetitive tasks, you can free up your time and focus on more important tasks, such as developing new features and fixing bugs. Automating your processes can also help you avoid mistakes and reduce the likelihood of human error, which can save you time and effort in the long run.
Another benefit of automating your processes is that it can improve the quality of your apps. By using tools and scripts to automate testing and other quality assurance tasks, you can ensure that your apps are working as expected and that any changes you make don’t introduce new bugs or errors. Automating your processes can also help you catch and fix issues early in the development process, which can save you time and effort in the long run.
One of the best ways to automate your development processes for Android apps is by using GitHub Actions. GitHub Actions is a powerful tool that allows you to automate your workflows on GitHub, including building, testing, and deploying your apps. With GitHub Actions, you can create custom pipelines for your Android apps, and you can use a wide range of pre-built actions and integrations to automate your processes.
To use GitHub Actions, like we discussed in the previous article, to automate your pipeline for Android apps, you first need to create a new repository on GitHub and push your app code to the repository. Then, you need to create a new workflow file in the .github/workflows
directory of your repository. This file should be written in YAML and it should define the steps of your pipeline, such as building, testing, and deploying your app.
Here is an example of a simple workflow file for an Android app:
name: Build, test, and deploy Android app | |
on: [push] | |
jobs: | |
build: | |
runs-on: ubuntu-latest | |
steps: | |
- uses: actions/checkout@v2 | |
- uses: actions/setup-java@v1 | |
with: | |
java-version: 1.8 | |
- run: ./gradlew build | |
test: | |
runs-on: ubuntu-latest | |
steps: | |
- uses: actions/checkout@v2 | |
- uses: actions/setup-java@v1 | |
with: | |
java-version: 1.8 | |
- run: ./gradlew test | |
deploy: | |
runs-on: ubuntu-latest | |
steps: | |
- uses: actions/checkout@v2 | |
- uses: actions/setup-java@v1 | |
with: | |
java-version: 1.8 | |
- run: ./gradlew deploy |
Lets analyse this a GitHub Action, it consists of three jobs: build
, test
, and deploy
. Each job is defined in a separate section, and each job has a set of steps that are executed in order. The build
job runs the ./gradlew build
command, which builds the Android app. The test
job runs the ./gradlew test
command, which runs the app’s tests. The deploy
job runs the ./gradlew deploy
command, which deploys the app to a specified target, such as an app store or a device.
Recalling what we learned in the last article , it is now easier to understand how GitHub Actions work. In this example, we are using both our own custom action and a marketplace action (actions/checkout@v2
), and we are using simple Gradle commands to build and test our Android app. The main difference is that these actions are now running on GitHub, rather than on our local machine.
Once you have this basic workflow set up, you can add additional steps to automate other tasks. For example, you can use the upload-artifact
action to upload the built APK file to your repository, so it can be downloaded and installed on a device for testing. Here is how that would look:
- name: Upload APK | |
uses: actions/upload-artifact@v1 | |
with: | |
name: app-debug.apk | |
path: app/build/outputs/apk/debug/app-debug.apk |
Lets explore something new
Github Secrets:

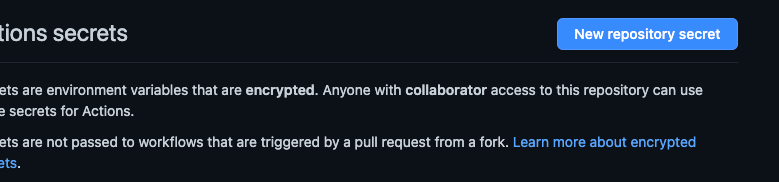

One of the key features of GitHub Actions is the ability to use secrets. Secrets are encrypted values that you can use to store sensitive information, such as API keys, passwords, and tokens. In this guide, we will show you how to add secrets to your repository on GitHub and how to use them in your workflow files.”
- Navigate to the Settings tab of your repository on GitHub.
2. In the left menu, click on the “Secrets” option.
- Click on the “actions” button and then the new repositpry secret button.
- Enter the name and value of your secret in the appropriate fields.
- Click on the “Add secret” button to save the secret.
- Repeat steps 3–5 for each secret you want to add to your repository.
- In your workflow file, use the following syntax to access the value of a secret:
${{ secrets.SECRET_NAME }}
Job Offers
8. Replace SECRET_NAME
with the name of the secret you want to access.
9. Save the changes to your workflow file and push the changes to your repository.
By following these steps, you can add secrets to your repository on GitHub and use them in your workflow files. This will allow you to access sensitive information in your workflow files without exposing it in your code or your repository, which can improve the security of your app and your codebase. By using secrets in your workflow files, you can create complex and secure pipelines for your apps on GitHub.
Automating Firebase App Distribution:
#upload qa flavour apk to firebase app tester using github actions name: Firebase App Tester QA on: push: branches: - "QA" jobs: build: runs-on: ubuntu-latest steps: - uses: actions/checkout@v2 - uses: actions/setup-java@v1 with: java-version: 11 - uses: actions/cache@v2 with: path: ~/.gradle/caches key: ${{ runner.os }}-gradle-${{ hashFiles('**/*.gradle*') }} restore-keys: | ${{ runner.os }}-gradle- - name: Build QA Flavour APK run: ./gradlew assembleQaDebug - name: Upload QA Flavour APK to Firebase App Tester uses: wzieba/Firebase-Distribution-Github-Action@v1 with: appId: ${{ secrets.QA_APP_ID }} serviceCredentialsFileContent: ${{ secrets.CREDENTIAL_FILE_CONTENT }} groups: qa-internal releaseNotes: ${{ github.event.head_commit.message }} file: app/build/outputs/apk/qa/debug/app-qa-debug.apk
This is action automates the process of building and uploading an Android app to Firebase App Distribution. It is triggered whenever a push is made to the QA
branch.
The Action consists of a single build
job, which runs on an ubuntu-latest
virtual machine provided by GitHub. The build
job has several steps.
- The first step uses the
actions/checkout
action to check out the code from the repository. This allows the Action to access the code and build the app.
- uses: actions/checkout@v2
2. The second step uses the actions/setup-java
action to set up Java on the virtual machine. This is necessary because the Android app is built using Gradle, which requires Java. The java-version
key specifies the version of Java to install, which is set to 11
in this example.
- uses: actions/setup-java@v1 with: java-version: 11
3. The third step uses the actions/cache
action to cache the Gradle dependencies. This can improve the performance of the build by allowing Gradle to use the cached dependencies instead of downloading them from the internet. The path
key specifies the location of the cache, and the key
and restore-keys
keys are used to identify the cache and restore it if necessary.
- uses: actions/cache@v2 with: path: ~/.gradle/caches key: ${{ runner.os }}-gradle-${{ hashFiles('**/*.gradle*') }} restore-keys: | ${{ runner.os }}-gradle-
4. The fourth step runs the ./gradlew assembleQaDebug
command, which builds the QA flavor of the app. This step uses the Gradle wrapper script (./gradlew
) to run the assembleQaDebug
task, which compiles the app and generates the APK file.
- name: Build QA Flavour APK run: ./gradlew assembleQaDebug
you can use different gradle commands to satisfy your needs apk/aab or debug/release.
5. In the final step this GitHub Action uses the wzieba/Firebase-Distribution-Github-Action
action to upload the APK to Firebase App Distribution. This action requires two secrets: QA_APP_ID
and CREDENTIAL_FILE_CONTENT
.
Note : a detailed step wise instructions available in first article of this series
The QA_APP_ID
secret is the ID of the app in Firebase. You can find this in the Firebase console by going to the “General” section of the “Project settings” page.
The CREDENTIAL_FILE_CONTENT
secret is the content of the JSON file that contains the service account credentials for the Firebase project. You can download this file from the Firebase console by going to the “Service accounts” section of the “Settings” page and clicking on the “Generate new private key” button.
To use these secrets in the Action, you need to add them to the repository’s secrets. You can do this by going to the “Settings” page of the repository and clicking on the “Secrets” tab. Then, click on the “Add a new secret” button and enter the name and value of the secret.
Once the secrets are added, you can use them in the Action by referencing them using the ${{ secrets.<SECRET_NAME> }}
syntax. For example, ${{ secrets.QA_APP_ID }}
refers to the QA_APP_ID
secret.
The groups
key specifies the group(s) that the app will be uploaded to. You can specify multiple groups by separating them with commas. For example, groups: testers,alpha,beta
will upload the app to the testers
, alpha
, and beta
groups.
The releaseNotes
key specifies the release notes for the app. This can be a static string or a reference to a dynamic value. In this example, the release notes are taken from the commit message of the push event that triggered the Action.
The file
key specifies the location of the APK file relative to the repository root. This is the file that will be uploaded to Fire
- name: Upload QA Flavour APK to Firebase App Tester uses: wzieba/Firebase-Distribution-Github-Action@v1 with: appId: ${{ secrets.QA_APP_ID }} serviceCredentialsFileContent: ${{ secrets.CREDENTIAL_FILE_CONTENT }} groups: qa-internal releaseNotes: ${{ github.event.head_commit.message }} file: app/build/outputs/apk/qa/debug/app-qa-debug.apk
Another example:
name: Upload App Bundle to Play Store on: [push] jobs: build: runs-on: ubuntu-latest steps: - uses: actions/checkout@v2 - uses: actions/setup-java@v1 with: java-version: 1.8 - uses: actions/cache@v2 with: path: ~/.gradle/caches key: ${{ runner.os }}-gradle-${{ hashFiles('**/*.gradle*') }} restore-keys: | ${{ runner.os }}-gradle- - name: Build App Bundle run: ./gradlew bundleRelease - name: Upload App Bundle to Play Store uses: r0adkll/upload-google-play@v2 with: package-name: com.example.app release-status: completed service-account-json: ${{ secrets.GOOGLE_PLAY_SERVICE_ACCOUNT }} track: production app-bundle: app/build/outputs/bundle/release/app-release.aab release-notes-file: release-notes.txt
This is a GitHub Action that automates the process of building an Android app bundle and uploading it to the Google Play Store. It is triggered whenever a push is made to any branch in the repository.After discussing the previous action in depth I hope this is fairly understandable.
In conclusion, GitHub Actions is a powerful tool for automating processes in Android development. With its rich ecosystem of Marketplace actions, you can easily build complex workflows without having to write any code.
However, to make the most of GitHub Actions, it is important to understand the basics of how it works and how to use Marketplace actions. With this knowledge, you can quickly and easily create custom workflows to automate various tasks in your Android development process, such as building, testing, and deploying your app.
Overall, GitHub Actions is a valuable resource for Android developers looking to improve their workflow and make their development process more efficient and streamlined.
To stay updated on my latest posts and insights, follow me on LinkedIn and Twitter. I look forward to connecting with you!!
https://www.linkedin.com/in/kashif-mehmood-km
If you found this article helpful and would like to support my work, you can buy me a coffee by clicking on the button below. Thank you for your support!
Happy Coding ❤ ❤ ❤
This article was originally published on proandroiddev.com on December 12, 2022
