Android 13 (API 33) introduces a new tool called photo picker 🖼. Today, we will learn how to integrate this into android applications.

It provides a browsable, searchable interface that presents the user with their media library, sorted by date 📆.

Note from official docs:

Upcoming Google Play system updates are expected to include new features related to the photo picker. In one such update, the library will add support for apps that target Android 11 (API level 30) or higher (excluding Android Go devices).

Major features

Safe, and a built-in method for users to select media files(photos/videos)
No permissions are required 💃

Media selection limit

By default maximum number of media selections allowed is set to 1.

🛑 During development, I found weird behavior when defining the maximum number 1, it immediately fails with RESULT_CANCELED(0) 🤯

No need to worry we can modify it 😊

Provide the limit using the putExtra() method of Intent

	EXTRA_PICK_IMAGES_MAX // "android.provider.extra.PICK_IMAGES_MAX"

	Example

	Intent(MediaStore.ACTION_PICK_IMAGES).apply {
	putExtra(MediaStore.EXTRA_PICK_IMAGES_MAX, 2) // deafult is 1
	}

view raw ExtraIntentValue.kt hosted with ❤ by GitHub

ℹ️ There is a platform limit on the largest number that needs to be respected when we specify the maximum number of files.

MediaStore.getPickImagesMaxLimit() provides that limit.

val maxLimit = MediaStore.getPickImagesMaxLimit()

view raw AccessMaxLimitValue.kt hosted with ❤ by GitHub

The photo picker opens in half-screen mode when the maximum is set to 1

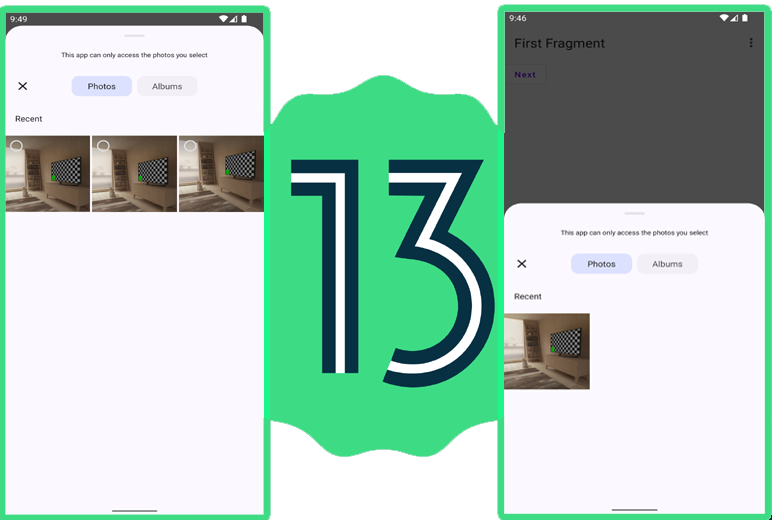

Photo picker screenshot

Left side (default limit 1), Right side (when the limit is more than 1)

Restricting MimeType

By default, the photo picker displays both photos 🖼 and videos 📹
No need to worry we can restrict it to photos or videos only 😊

Provide the MimeType by using the setType() method of Intent

	Intent(MediaStore.ACTION_PICK_IMAGES).apply {
	type = "image/*"
	// only videos
	type = "video/*"
	}

view raw SetMimeType.kt hosted with ❤ by GitHub

Let’s code it

XML-based UI, Photo picker, and ActivityResult API

	// create ActivityResultContract
	val getContent =
	registerForActivityResult(ActivityResultContracts.StartActivityForResult()) { result ->
	result?.let { nonNullableResult ->
	when (nonNullableResult.resultCode == RESULT_OK) {
	true -> {
	val intent = nonNullableResult.data
	intent?.data?.let { uri ->
	// process data
	}
	}
	false -> {
	}
	}
	}
	}

	// launch the intent on button click
	binding.fab.setOnClickListener {
	Log.d(TAG, "onCreate:${MediaStore.getPickImagesMaxLimit()}")
	val intent = Intent(MediaStore.ACTION_PICK_IMAGES).apply {
	type = "image/*"
	}
	getContent.launch(intent)
	}

view raw ActivityResultApiOldUIVersion.kt hosted with ❤ by GitHub

Compose, Photo picker, and ActivityResult API

	@Composable
	fun PhotoPickerResultComposable() {
	var result by rememberSaveable { mutableStateOf<Uri?>(null) }
	val launcher =
	rememberLauncherForActivityResult(ActivityResultContracts.StartActivityForResult()) {
	result = it.data?.data
	}
	Column(
	verticalArrangement = Arrangement.Center,
	horizontalAlignment = Alignment.CenterHorizontally
	) {
	OpenPhotoPicker(openLauncher = { launcher.launch(photoIntent) })
	AsyncImage(
	model = result,
	contentDescription = "Image from photo picker",
	contentScale = ContentScale.Crop,
	modifier = Modifier
	.size(200.dp, 200.dp)
	.clip(CircleShape)
	)
	}
	}
