Before we start, you can check the Youtube Demo Video to understand what we’ll do in this article. We’ll be implementing RecyclerView with,

• State Management with multiple view types (Loading, Error, Pagination etc.)
• View Binding
• Pull to Refresh
• DiffUtil
• Pagination
• Shimmer Loading Animation
• Scroll to Top FAB
• Favorite Button
• Error Handling
• Popup Menu
• Delete/Update/Insert Item

I wanted to cover everything that you might need in your project. Hopefully this article will help you understand more about RecyclerView. It’s open to improvements and feedback. Please do let me know if you have any.

android {
    //...
    buildFeatures {
        viewBinding true
    }
}

dependencies {
    //...
    implementation 'androidx.swiperefreshlayout:swiperefreshlayout:1.1.0'
    implementation 'androidx.lifecycle:lifecycle-livedata-ktx:2.5.1'
    implementation 'androidx.lifecycle:lifecycle-viewmodel-ktx:2.5.1'
    implementation 'androidx.lifecycle:lifecycle-runtime-ktx:2.5.1'
    implementation "com.facebook.shimmer:shimmer:0.5.0"
}

sealed class NetworkResponse<out T> {
    data class Loading(
        val isPaginating: Boolean = false,
    ): NetworkResponse<Nothing>()

    data class Success<out T>(
        val data: T,
        val isPaginationData: Boolean = false,
    ): NetworkResponse<T>()

    data class Failure(
        val errorMessage: String,
        val isPaginationError: Boolean = false,
    ): NetworkResponse<Nothing>()
}

enum class RecyclerViewEnum(val value: Int) {
    Empty(0),
    Loading(1),
    Error(2),
    View(3),
    PaginationLoading(4),
    PaginationExhaust(5),
}

data class Operation<out T>(
    val data: T,
    val operationEnum: OperationEnum
)

enum class OperationEnum {
    Insert,
    Delete,
    Update,
}

data class RecyclerViewModel(
    var id: String,
    var content: String = "",
    var isLiked: Boolean = false,
) {
    val text: String
        get() = "ID: $id"

    override fun equals(other: Any?): Boolean {
        if (this === other)
            return true
        if (other !is RecyclerViewModel)
            return false
        return other.id == id
    }

    override fun hashCode() = Objects.hash(id)
}

class RecyclerViewDiffUtilCallBack(
    private val oldList: List<RecyclerViewModel>,
    private val newList: List<RecyclerViewModel>,
): DiffUtil.Callback() {
    override fun getOldListSize() = oldList.size

    override fun getNewListSize() = newList.size

    override fun areItemsTheSame(oldItemPosition: Int, newItemPosition: Int): Boolean {
        return oldList[oldItemPosition].id == newList[newItemPosition].id
    }

    override fun areContentsTheSame(oldItemPosition: Int, newItemPosition: Int): Boolean {
        return when {
            oldList[oldItemPosition].id != newList[newItemPosition].id -> false
            oldList[oldItemPosition].content != newList[newItemPosition].content -> false
            oldList[oldItemPosition].isLiked != newList[newItemPosition].isLiked -> false
            else -> true
        }
    }
}

@Suppress("UNCHECKED_CAST")
@SuppressLint("NotifyDataSetChanged")
abstract class BaseAdapter<T>(open val interaction: Interaction<T>): RecyclerView.Adapter<RecyclerView.ViewHolder>() {
    private var errorMessage: String? = null
    var isLoading = true
    var isPaginating = false
    var canPaginate = true

    protected var arrayList: ArrayList<T> = arrayListOf()

    protected abstract fun handleDiffUtil(newList: ArrayList<T>)

    override fun onBindViewHolder(holder: RecyclerView.ViewHolder, position: Int) {
        when(getItemViewType(position)) {
            RecyclerViewEnum.View.value -> {
                (holder as ItemViewHolderBind<T>).bind(arrayList[position], position, interaction)
            }
            RecyclerViewEnum.Error.value -> {
                (holder as ErrorViewHolderBind<T>).bind(errorMessage, interaction)
            }
            RecyclerViewEnum.PaginationExhaust.value -> {
                (holder as PaginationExhaustViewHolderBind<T>).bind(interaction)
            }
        }
    }

    override fun getItemViewType(position: Int) : Int {
        return if (isLoading)
            RecyclerViewEnum.Loading.value
        else if (errorMessage != null)
            RecyclerViewEnum.Error.value
        else if (isPaginating && position == arrayList.size)
            RecyclerViewEnum.PaginationLoading.value
        else if (!canPaginate && position == arrayList.size)
            RecyclerViewEnum.PaginationExhaust.value
        else if (arrayList.isEmpty())
            RecyclerViewEnum.Empty.value
        else
            RecyclerViewEnum.View.value
    }

    override fun getItemCount(): Int {
        return if (isLoading || errorMessage != null || arrayList.isEmpty())
            1
        else {
            if (arrayList.isNotEmpty() && !isPaginating && canPaginate) //View Type
                arrayList.size
            else
                arrayList.size.plus(1)
        }
    }

    fun setError(errorMessage: String, isPaginationError: Boolean) {
        //...
    }

    fun setLoadingView(isPaginating: Boolean) {
        //...
    }

    fun handleOperation(operation: Operation<T>) {
        //...
    }

    fun setData(newList: ArrayList<T>, isPaginationData: Boolean = false) {
        //...
    }

    private fun setState(rvEnum: RecyclerViewEnum) {
        //...
    }

fun setErrorView(errorMessage: String, isPaginationError: Boolean) {
    if (isPaginationError) {
        setState(RecyclerViewEnum.PaginationExhaust)
        notifyItemInserted(itemCount)
    } else {
        setState(RecyclerViewEnum.Error)
        this.errorMessage = errorMessage
        notifyDataSetChanged()
    }
}

fun setLoadingView(isPaginating: Boolean) {
    if (isPaginating) {
        setState(RecyclerViewEnum.PaginationLoading)
        notifyItemInserted(itemCount)
    } else {
        setState(RecyclerViewEnum.Loading)
        notifyDataSetChanged()
    }
}

fun handleOperation(operation: Operation<T>) {
    val newList = arrayList.toMutableList()

    when(operation.operationEnum) {
        OperationEnum.Insert -> {
            newList.add(operation.data)
        }
        OperationEnum.Delete -> {
            newList.remove(operation.data)
        }
        OperationEnum.Update -> {
            val index = newList.indexOfFirst {
                it == operation.data
            }
            newList[index] = operation.data
        }
    }

    handleDiffUtil(newList as ArrayList<T>)
}

fun setData(newList: ArrayList<T>, isPaginationData: Boolean = false) {
    setState(RecyclerViewEnum.View)

    if (!isPaginationData) {
        if (arrayList.isNotEmpty())
            arrayList.clear()
        arrayList.addAll(newList)
        notifyDataSetChanged()
    } else {
        notifyItemRemoved(itemCount)

        newList.addAll(0, arrayList)
        handleDiffUtil(newList)
    }
}

private fun setState(rvEnum: RecyclerViewEnum) {
    when(rvEnum) {
        RecyclerViewEnum.Empty -> {
            isLoading = false
            isPaginating = false
            errorMessage = null
        }
        RecyclerViewEnum.Loading -> {
            isLoading = true
            isPaginating = false
            errorMessage = null
            canPaginate = true
        }
        RecyclerViewEnum.Error -> {
            isLoading = false
            isPaginating = false
        }
        RecyclerViewEnum.View -> {
            isLoading = false
            isPaginating = false
            errorMessage = null
        }
        RecyclerViewEnum.PaginationLoading -> {
            isLoading = false
            isPaginating = true
            errorMessage = null
        }
        RecyclerViewEnum.PaginationExhaust -> {
            isLoading = false
            isPaginating = false
            canPaginate = false
        }
    }
}

@Suppress("UNCHECKED_CAST")
class RecyclerViewAdapter(
    override val interaction: Interaction<RecyclerViewModel>,
    private val extraInteraction: RecyclerViewInteraction,
): BaseAdapter<RecyclerViewModel>(interaction) {

    override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): RecyclerView.ViewHolder {
        return when(viewType) {
            RecyclerViewEnum.View.value -> ItemViewHolder(CellItemBinding.inflate(LayoutInflater.from(parent.context), parent, false), extraInteraction)
            RecyclerViewEnum.Loading.value -> LoadingViewHolder(CellLoadingBinding.inflate(LayoutInflater.from(parent.context), parent, false))
            RecyclerViewEnum.PaginationLoading.value -> PaginationLoadingViewHolder(CellPaginationLoadingBinding.inflate(LayoutInflater.from(parent.context), parent, false))
            RecyclerViewEnum.PaginationExhaust.value -> PaginationExhaustViewHolder(CellPaginationExhaustBinding.inflate(LayoutInflater.from(parent.context), parent, false))
            RecyclerViewEnum.Error.value -> ErrorItemViewHolder(CellErrorBinding.inflate(LayoutInflater.from(parent.context), parent, false))
            else -> EmptyViewHolder(CellEmptyBinding.inflate(LayoutInflater.from(parent.context), parent, false))
        }
    }

    override fun handleDiffUtil(newList: ArrayList<RecyclerViewModel>) {
        val diffUtil = RecyclerViewDiffUtilCallBack(
            arrayList,
            newList,
        )
        val diffResults = DiffUtil.calculateDiff(diffUtil, true)

        arrayList = newList.toList() as ArrayList<RecyclerViewModel>

        diffResults.dispatchUpdatesTo(this)
    }
}

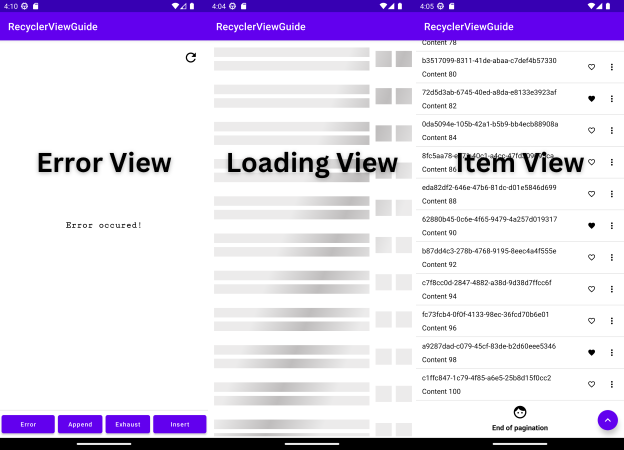

View Type Designs

View Holder

It’s already a long article, so I’ll skip the implementations of view holders except the ItemViewHolder. You can check other view holders from the source code. If you have any questions, feel free to ask.

class ItemViewHolder(
    private val binding: CellItemBinding,
    private val extraInteraction: RecyclerViewInteraction,
): RecyclerView.ViewHolder(binding.root), ItemViewHolderBind<RecyclerViewModel> {
    override fun bind(item: RecyclerViewModel, position: Int, interaction: Interaction<RecyclerViewModel>) {

        val text = "Position: $position ${item.text}"
        binding.contentTV.text = item.content.ifBlank { text }
        binding.idTV.text = item.id
        binding.favButton.setImageDrawable(ContextCompat.getDrawable(binding.root.context, if (item.isLiked) R.drawable.ic_heart else R.drawable.ic_empty_heart))

        binding.moreButton.setOnClickListener {
            val popupMenu = PopupMenu(binding.root.context, binding.moreButton)
            popupMenu.inflate(R.menu.popup_menu)

            popupMenu.setOnMenuItemClickListener {
                when(it.itemId) {
                    R.id.delete -> {
                        try {
                            extraInteraction.onDeletePressed(item)
                        } catch (e: Exception) {
                            Toast.makeText(
                                binding.root.context,
                                "Please wait before doing any operation.",
                                Toast.LENGTH_SHORT
                            ).show()
                        }
                        return@setOnMenuItemClickListener true
                    }
                    R.id.update -> {
                        try {
                            extraInteraction.onUpdatePressed(item)
                        } catch (e: Exception) {
                            Toast.makeText(
                                binding.root.context,
                                "Please wait before doing any operation.",
                                Toast.LENGTH_SHORT
                            ).show()
                        }
                        return@setOnMenuItemClickListener true
                    }
                    else -> {
                        return@setOnMenuItemClickListener false
                    }
                }
            }

            popupMenu.show()
        }

        binding.favButton.setOnClickListener {
            extraInteraction.onLikePressed(item)
        }

        binding.root.setOnClickListener {
            try {
                interaction.onItemSelected(item)
            } catch (e: Exception) {
                Toast.makeText(
                    binding.root.context,
                    "Please wait before doing any operation.",
                    Toast.LENGTH_SHORT
                ).show()
            }
        }
    }
}

In bind function, we set the UI elements and click events. Again, there is nothing “magical” about this.

Repository & View Model

const val PAGE_SIZE = 50

class MainRepository {

    private val tempList = arrayListOf<RecyclerViewModel>().apply {
        for (i in 0..PAGE_SIZE) {
            add(RecyclerViewModel(UUID.randomUUID().toString(), "Content $i"),)
        }
    }

    fun fetchData(page: Int): Flow<NetworkResponse<ArrayList<RecyclerViewModel>>> = flow {
        emit(NetworkResponse.Loading(page != 1))

        kotlinx.coroutines.delay(2000L)

        try {
            if (page == 1)
                emit(NetworkResponse.Success(tempList.toList() as ArrayList<RecyclerViewModel>))
            else {
                val tempPaginationList = arrayListOf<RecyclerViewModel>().apply {
                    for (i in 0..PAGE_SIZE) {
                        add(RecyclerViewModel(UUID.randomUUID().toString(), "Content ${i * 2}"),)
                    }
                }

                if (page < 4) {
                    emit(NetworkResponse.Success(
                        tempPaginationList,
                        isPaginationData = true,
                    ))
                } else {
                    emit(NetworkResponse.Failure(
                        "Pagination failed.",
                        isPaginationError = true
                    ))
                }
            }
        } catch (e: Exception) {
            emit(NetworkResponse.Failure(
                e.message ?: e.toString(),
                isPaginationError = page != 1
            ))
        }
    }.flowOn(Dispatchers.IO)

    fun deleteData(item: RecyclerViewModel): Flow<NetworkResponse<Operation<RecyclerViewModel>>> = flow {
        kotlinx.coroutines.delay(1000L)

        try {
            emit(NetworkResponse.Success(Operation(item, OperationEnum.Delete)))
        } catch (e: Exception) {
            emit(NetworkResponse.Failure(e.message ?: e.toString()))
        }
    }.flowOn(Dispatchers.IO)

    fun updateData(item: RecyclerViewModel): Flow<NetworkResponse<Operation<RecyclerViewModel>>> = flow {
        kotlinx.coroutines.delay(1000L)

        try {
            item.content = "Updated Content ${(0..10).random()}"
            emit(NetworkResponse.Success(Operation(item, OperationEnum.Update)))
        } catch (e: Exception) {
            emit(NetworkResponse.Failure(e.message ?: e.toString()))
        }
    }.flowOn(Dispatchers.IO)

    fun toggleLikeData(item: RecyclerViewModel): Flow<NetworkResponse<Operation<RecyclerViewModel>>> = flow {
        kotlinx.coroutines.delay(1000L)

        try {
            item.isLiked = !item.isLiked
            emit(NetworkResponse.Success(Operation(item, OperationEnum.Update)))
        } catch (e: Exception) {
            emit(NetworkResponse.Failure(e.message ?: e.toString()))
        }
    }.flowOn(Dispatchers.IO)

    fun insertData(item: RecyclerViewModel): Flow<NetworkResponse<Operation<RecyclerViewModel>>> = flow {
        emit(NetworkResponse.Loading())

        kotlinx.coroutines.delay(1000L)

        try {
            emit(NetworkResponse.Success(Operation(item, operationEnum = OperationEnum.Insert)))
        } catch (e: Exception) {
            emit(NetworkResponse.Failure(e.message ?: e.toString()))
        }
    }.flowOn(Dispatchers.IO)
}

We’ll try to pretend like we are making a network request, waiting for it to finish and present the data. We’ll use flows to present NetworkResponse.

For example, in fetchData first we send loading state with NetworkResponse.Loading and wait 2 seconds. After waiting, if page number is 1 which means we are either refreshing or it’s initial fetch, we send NetworkResponse.Success with data. If page number is something other than 1, it means we are paginating and we send NetworkResponse.Success with isPaginationData = true.

Since we mimic the network request, if page number is 4, we exhaust the pagination and sent NetworkResponse.Failure with isPaginationError = true to show pagination exhaust view.

We have a similar logic for other functions too. Only difference is, in some cases we use NetworkResponse with Operation. These functions are used to mimic insert, update and delete.

class MainViewModel : ViewModel() {
    private val repository = MainRepository()

    private val _rvList = MutableLiveData<NetworkResponse<ArrayList<RecyclerViewModel>>>()
    val rvList: LiveData<NetworkResponse<ArrayList<RecyclerViewModel>>> = _rvList

    private val _rvOperation = MutableLiveData<NetworkResponse<Operation<RecyclerViewModel>>>()
    val rvOperation: LiveData<NetworkResponse<Operation<RecyclerViewModel>>> = _rvOperation

    private var page: Int = 1

    init {
        fetchData()
    }

    fun refreshData() {
        page = 1
        fetchData()
    }

    fun fetchData() = viewModelScope.launch(Dispatchers.IO) {
        repository.fetchData(page).collect { state ->
            withContext(Dispatchers.Main) {
                _rvList.value = state

                if (state is NetworkResponse.Success) {
                    page += 1
                }
            }
        }
    }

    fun deleteData(item: RecyclerViewModel) = viewModelScope.launch(Dispatchers.IO) {
        repository.deleteData(item).collect { state ->
            withContext(Dispatchers.Main) {
                _rvOperation.value = state
            }
        }
    }

    fun updateData(item: RecyclerViewModel) = viewModelScope.launch(Dispatchers.IO) {
        repository.updateData(item).collect { state ->
            withContext(Dispatchers.Main) {
                _rvOperation.value = state
            }
        }
    }

    fun toggleLikeData(item: RecyclerViewModel) = viewModelScope.launch(Dispatchers.IO) {
        repository.toggleLikeData(item).collect { state ->
            withContext(Dispatchers.Main) {
                _rvOperation.value = state
            }
        }
    }

    fun insertData(item: RecyclerViewModel) = viewModelScope.launch(Dispatchers.IO) {
        repository.insertData(item).collect { state ->
            withContext(Dispatchers.Main) {
                _rvOperation.value = state
            }
        }
    }

    fun throwError() = viewModelScope.launch(Dispatchers.Main) {
        _rvList.value = NetworkResponse.Failure("Error occured!")
    }

    fun exhaustPagination() = viewModelScope.launch(Dispatchers.Main) {
        _rvList.value = NetworkResponse.Failure(
            "Pagination Exhaust",
            true
        )
    }
}

View model is only here to present the data to UI. We’ll have two LiveData, rvList and rvOperation. rvList will be used to listen changes on our list and rvOperation will be used to listen operations e.g., new item gets inserted and we’ll listen to that operation and handle it in UI.

UI

class MainFragment : BaseFragment<FragmentMainBinding>() {
    private lateinit var viewModel: MainViewModel
    private var recyclerViewAdapter: RecyclerViewAdapter? = null
    private var loadingDialog: Dialog? = null

    //OnCreate and OnCreateView commented.

    override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
        super.onViewCreated(view, savedInstanceState)

        setDialog(view.context)
        setListeners()
        setRecyclerView()
        setObservers()
    }

    private fun setDialog(context: Context) {
        loadingDialog = Dialog(context)
        loadingDialog?.setCancelable(false)
        loadingDialog?.setContentView(R.layout.dialog_loading)
        loadingDialog?.window?.setBackgroundDrawable(ColorDrawable(Color.TRANSPARENT))
    }

    private fun setListeners() {
        binding.swipeRefreshLayout.setOnRefreshListener {
            viewModel.refreshData()

            binding.swipeRefreshLayout.isRefreshing = false
        }

        binding.errorButton.setOnClickListener {
            viewModel.throwError()
        }

        binding.appendButton.setOnClickListener {
            if (recyclerViewAdapter?.canPaginate == true && recyclerViewAdapter?.isPaginating == false)
                viewModel.fetchData()

            binding.mainRV.scrollToPosition(recyclerViewAdapter?.itemCount ?: 0)
        }

        binding.insertButton.setOnClickListener {
            viewModel.insertData(RecyclerViewModel(UUID.randomUUID().toString()))
        }

        binding.paginateErrorButton.setOnClickListener {
            viewModel.exhaustPagination()
        }

        binding.fab.setOnClickListener {
            viewLifecycleOwner.lifecycleScope.launch {
                binding.mainRV.quickScrollToTop()
            }
        }
    }

    private fun setObservers() {
        viewModel.rvList.observe(viewLifecycleOwner) { response ->
            binding.swipeRefreshLayout.isEnabled = when (response) {
                is NetworkResponse.Success -> {
                    true
                }
                is NetworkResponse.Failure -> {
                    response.isPaginationError
                }
                else -> false
            }

            when(response) {
                is NetworkResponse.Failure -> {
                    recyclerViewAdapter?.setErrorView(response.errorMessage, response.isPaginationError)
                }
                is NetworkResponse.Loading -> {
                    recyclerViewAdapter?.setLoadingView(response.isPaginating)
                }
                is NetworkResponse.Success -> {
                    recyclerViewAdapter?.setData(response.data, response.isPaginationData)
                }
            }
        }

        viewModel.rvOperation.observe(viewLifecycleOwner) { response ->
            when(response) {
                is NetworkResponse.Failure -> {
                    if (loadingDialog?.isShowing == true)
                        loadingDialog?.dismiss()
                }
                is NetworkResponse.Loading -> {
                    if (recyclerViewAdapter?.isLoading == false)
                        loadingDialog?.show()
                }
                is NetworkResponse.Success -> {
                    if (loadingDialog?.isShowing == true)
                        loadingDialog?.dismiss()
                    recyclerViewAdapter?.handleOperation(response.data)
                }
            }
        }
    }

    private fun setRecyclerView() {
        //... Later
    }
}

We’ll implement setRecyclerView function later,

setListeners function is to set click or refresh listeners. Most buttons are for testing purposes and not really necessary. binding.fab is scroll to top button. quickScrollToTop is custom function by

. You can check his article from this link.

In rvList.observe,

• We set the swipeRefreshLayout.isEnabled since we don’t want user to refresh again when we are already loading the data.
• In when(response), we check NetworkResponse type and call necessary function with recyclerViewAdapter.

Same logic in rvOperation.observe,

• We check the response in when(response) and call necessary function.
  Only difference is, we show or dismiss loading dialog.

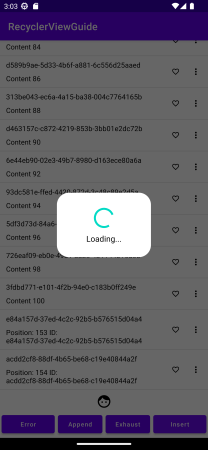

Loading Dialog

private fun setRecyclerView() {
    binding.mainRV.apply {
        val linearLayoutManager = LinearLayoutManager(context)
        layoutManager = linearLayoutManager
        addItemDecoration(DividerItemDecoration(context, linearLayoutManager.orientation))
        recyclerViewAdapter = RecyclerViewAdapter(object: Interaction<RecyclerViewModel> {
            override fun onItemSelected(item: RecyclerViewModel) {
                Toast.makeText(context, "Item ${item.content}", Toast.LENGTH_SHORT).show()
            }

            override fun onErrorRefreshPressed() {
                viewModel.refreshData()
            }

            override fun onExhaustButtonPressed() {
                viewLifecycleOwner.lifecycleScope.launch {
                    quickScrollToTop()
                }
            }
        }, object: RecyclerViewInteraction {
            override fun onUpdatePressed(item: RecyclerViewModel) {
                viewModel.updateData(item.copy())
            }

            override fun onDeletePressed(item: RecyclerViewModel) {
                viewModel.deleteData(item)
            }

            override fun onLikePressed(item: RecyclerViewModel) {
                viewModel.toggleLikeData(item.copy())
            }

        })
        adapter = recyclerViewAdapter

        var isScrolling = false
        addOnScrollListener(object: RecyclerView.OnScrollListener() {
            override fun onScrollStateChanged(recyclerView: RecyclerView, newState: Int) {
                super.onScrollStateChanged(recyclerView, newState)
                isScrolling = newState != AbsListView.OnScrollListener.SCROLL_STATE_IDLE
            }

            override fun onScrolled(recyclerView: RecyclerView, dx: Int, dy: Int) {
                super.onScrolled(recyclerView, dx, dy)
                val itemCount = linearLayoutManager.itemCount
                val lastVisibleItemPosition = linearLayoutManager.findLastVisibleItemPosition()

                if (lastVisibleItemPosition > PAGE_SIZE.plus(PAGE_SIZE.div(2)) && dy <= -75) {
                    binding.fab.show()
                } else if (lastVisibleItemPosition <= PAGE_SIZE.plus(PAGE_SIZE.div(2)) || dy >= 60) {
                    binding.fab.hide()
                }

                recyclerViewAdapter?.let {
                    if (
                        isScrolling &&
                        lastVisibleItemPosition >= itemCount.minus(5) &&
                        it.canPaginate &&
                        !it.isPaginating
                    ) {
                        viewModel.fetchData()
                    }
                }
            }
        })
    }
}

Finally, setRecyclerView function. We create and set recyclerViewAdapter to binding.mainRV.

We also implement addScrollListener which will be used to show/hide fab and trigger the pagination.

• For fab.show, we check if we’ve scrolled enough and certain number of items visible. If so, if we’ve also scrolled certain number in negative direction. fab.hide is the reverse of that. You can try yourself and set numbers yourself.
• For pagination, we check if we are scrolling & if we are certain number before the last visible item & if canPaginate & if we are not already paginating.

Shimmer

We’ll separate shimmer into two parts, first will be normal layout part and second will be ShimmerFrameLayout,

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_marginVertical="6dp">

    <TextView
        android:id="@+id/shimmerIdTV"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_marginStart="12dp"
        android:layout_marginTop="8dp"
        android:layout_marginEnd="12dp"
        android:textColor="@color/black"
        android:background="@color/shimmer_color"
        app:layout_constraintEnd_toStartOf="@+id/shimmerFavButton"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <TextView
        android:id="@+id/shimmerContentTV"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_marginStart="12dp"
        android:layout_marginTop="8dp"
        android:layout_marginEnd="12dp"
        android:layout_marginBottom="8dp"
        android:background="@color/shimmer_color"
        android:textColor="@color/black"
        android:textSize="14sp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toStartOf="@+id/shimmerFavButton"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/shimmerIdTV" />

    <ImageView
        android:id="@+id/shimmerFavButton"
        android:layout_width="32dp"
        android:layout_height="32dp"
        android:layout_marginEnd="8dp"
        android:background="@color/shimmer_color"
        app:layout_constraintBottom_toBottomOf="@+id/shimmerMoreButton"
        app:layout_constraintEnd_toStartOf="@+id/shimmerMoreButton"
        app:layout_constraintTop_toTopOf="@+id/shimmerMoreButton"
        app:layout_constraintVertical_bias="0.407" />

    <ImageView
        android:id="@+id/shimmerMoreButton"
        android:layout_width="32dp"
        android:layout_height="32dp"
        android:layout_marginEnd="8dp"
        android:background="@color/shimmer_color"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintTop_toTopOf="parent"/>
</androidx.constraintlayout.widget.ConstraintLayout>

simmerColor code is #BFBDBD

We’ve simply copied and pasted RecyclerView item design and added background=”@color/shimmer_color” to each one of them.

<?xml version="1.0" encoding="utf-8"?>
<com.facebook.shimmer.ShimmerFrameLayout
    android:id="@+id/shimmerLoadingLayout"
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    app:shimmer_auto_start="true"
    app:shimmer_duration="1300">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical">

        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
        <include layout="@layout/cell_shimmer"/>
    </LinearLayout>
</com.facebook.shimmer.ShimmerFrameLayout>

Inside of ShimmerFrameLayout, we set auto_start="true" to start animation automatically. duration is how long it takes to finis the animation. You can see more about it here.

You can decrease or increase the number of included layouts. I’ve tried to add as low as I can to cover whole screen. Less is better for performance, I think 🙂

That’s it! I hope it was useful. 👋👋

This article was originally published on proandroiddev.com on January 05, 2023
