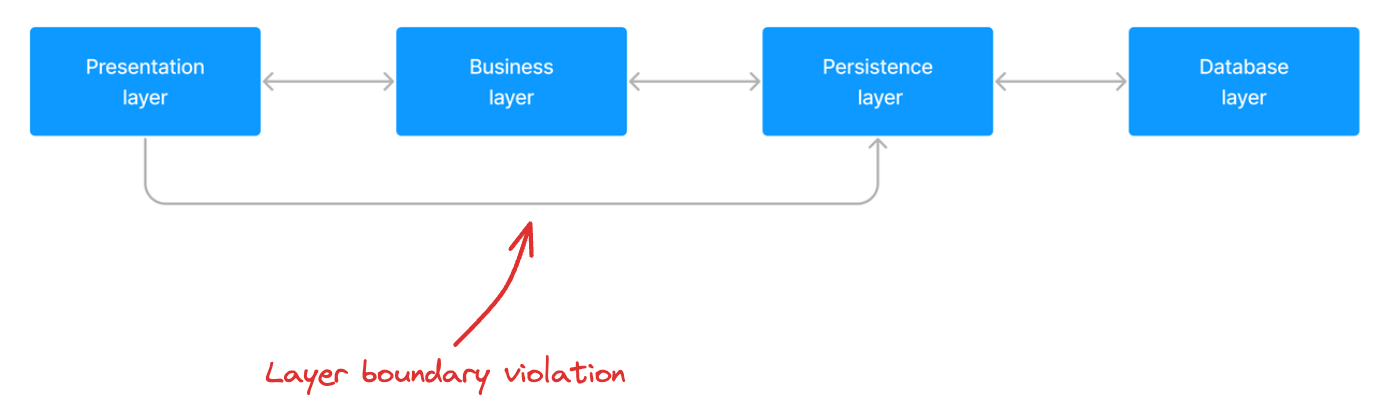

Kotlin compiler will compile the code and the application will run just fine, but the architecture is broken.

It is common for developers to break architectural boundaries. Some developers may not be familiar with project architecture, others will simply make an honest mistake. This architectural violation can be obviously caught during PR review, but there is no such guarantee and often it is missed. In fact, this may be the main reason why many projects have broken architecture heaving spaghetti code. Let’s look at how Konsist can help to avoid such mistakes.

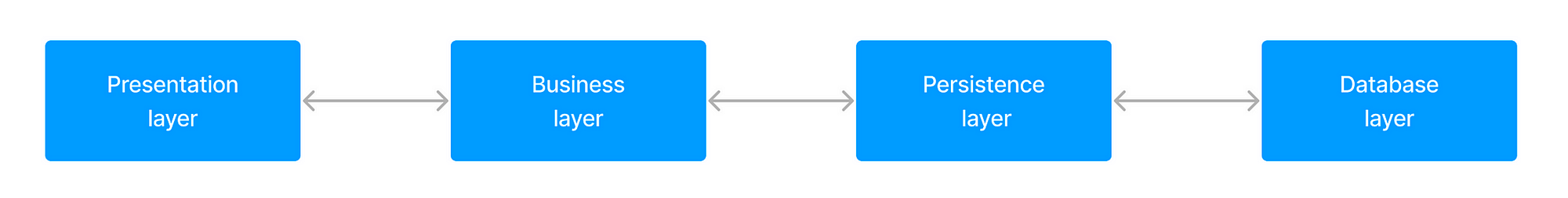

Protect 4 Tier Architecture

Konsist helps with maintaining architectural layer boundaries when multiple application layers are defined (as packages) within a single (feature) module.

Konsist can check whether each application layer uses resources only defined within permitted layers.

Firstly we need to define scope from the entire project (or the module) and use assertArchitecture method:

Konsist
    .scopeFromProject()
    .assertArchitecture {
    }

Then we need to define all layers represented by individual packages:

Konsist
    .scopeFromProject()
    .assertArchitecture {
        val presentation = Layer("Presentation", "com.myapp.presentation..")
        val business = Layer("Business", "com.myapp.business..")
        val persistence = Layer("Persistence", "com.myapp.persistence..")
        val database = Layer("Database", "com.myapp.database..")
    }

Then we have to define dependencies between layers:

Konsist
    .scopeFromProject()
    .assertArchitecture {
        val presentation = Layer("Presentation", "com.myapp.presentation..")
        val business = Layer("Business", "com.myapp.business..")
        val persistence = Layer("Persistence", "com.myapp.persistence..")
        val database = Layer("Database", "com.myapp.database..")

        presentation.dependsOn(business)
        business.dependsOn(presentation)
        business.dependsOn(persistence)
        persistence.dependsOn(business)
        business.dependsOn(database)
        database.dependsOn(business)
    }

Finally, we have to wrap Konsist guard inside a unit test:

@Test
fun `architecture has correct dependencies`() {
    Konsist
        .scopeFromProject()
        .assertArchitecture {
            // Define layers
            val presentation = Layer("Presentation", "com.myapp.presentation..")
            val business = Layer("Business", "com.myapp.business..")
            val persistence = Layer("Persistence", "com.myapp.persistence..")
            val database = Layer("Database", "com.myapp.database..")

            // Define layer dependencies
            presentation.dependsOn(business)
            business.dependsOn(presentation)
            business.dependsOn(persistence)
            persistence.dependsOn(business)
            business.dependsOn(database)
            database.dependsOn(business)
        }
}

The above test will verify dependencies between architectural layers. This test should be executed as part of PR verification to provide a solid architectural check.

Protect Clean Architecture

The Clean Architecture is another popular architecture. One of the key concepts in this architecture is the dependency rule, which stipulates that dependencies should only point inward toward the core business logic:

In this simple 3-layer Clean Architecture, the innermost circle is the domain layer, containing core business logic. Surrounding it are the presentation and data layers, which handle user interfaces and data storage respectively. Dependencies flow inward, ensuring the domain layer remains isolated from external changes.

Here are the constraints derived from the above diagram:

• domain layer is independent
• presentation layer depends on the domain layer
• data layer depends on the domain layer

To projects such architecture using Konsist we need to define a similar test. This time we will define different dependencies between layers:

@Test
fun `clean architecture layers have correct dependencies`() {
    Konsist
        .scopeFromProduction()
        .assertArchitecture {
            // Define layers
            val domain = Layer("Domain", "com.myapp.domain..")
            val presentation = Layer("Presentation", "com.myapp.presentation..")
            val data = Layer("Data", "com.myapp.data..")

            // Define layer dependencies
            domain.dependsOnNothing()
            presentation.dependsOn(domain)
            data.dependsOn(domain)
        }
}

Summary

Konsist is a tool designed to ensure architectural consistency in Kotlin projects, including Android, Spring, and Kotlin Multiplatform. It verifies architectural layer boundaries, addressing common pitfalls where developers might inadvertently breach these structures. Without such checks, architectural violations might go unnoticed in PR reviews, leading to problematic code structures. By embedding Konsist’s checks in unit tests, projects can maintain and enforce their intended architecture during PR verification, benefiting both standard and Clean Architecture paradigms.
