Modal bottom sheets present a set of choices while blocking interaction with the rest of the screen. They are an alternative to inline menus and simple dialogs, providing additional room for content, iconography, and actions.

Getting Started

If you created your project with Empty Compose Activity template, you can skip this part but don’t forget to check versions and if necessary, update them. How to create Compose app?

//...
android {
//...
buildFeatures {
compose true
}
composeOptions {
kotlinCompilerExtensionVersion '1.3.1'
}
}
dependencies {
//...
def compose_ui_version = '1.3.1'
implementation "androidx.compose.ui:ui:$compose_ui_version"
implementation "androidx.compose.ui:ui-tooling-preview:$compose_ui_version"
implementation "androidx.compose.material:material:$compose_ui_version"
}
view raw build.gradle hosted with ❤ by GitHub
Implementation

First, we set our state variable and coroutine scope.

val coroutineScope = rememberCoroutineScope()
val modalSheetState = rememberModalBottomSheetState(
initialValue = ModalBottomSheetValue.Hidden,
confirmStateChange = { it != ModalBottomSheetValue.HalfExpanded },
skipHalfExpanded = true,
)
view raw MainActivity.kt hosted with ❤ by GitHub

confirmStateChange is necessary to control the behavior of bottom sheet. If you set confirmStateChange = { false } user will not be able to dismiss bottom sheet by dragging or tapping outside.

skipHalfExpandedWhether the half expanded state, if the sheet is tall enough, should be skipped. If true, the sheet will always expand to the Expanded state and move to the Hidden state when hiding the sheet, either programmatically or by user interaction.

Now we will create our bottom sheet UI,

ModalBottomSheetLayout(
sheetState = modalSheetState,
sheetShape = RoundedCornerShape(topStart = 12.dp, topEnd = 12.dp),
sheetContent = {
Column(
//...
) {
//...
Button(
onClick = {
coroutineScope.launch { modalSheetState.hide() }
}
) {
Text(text = "Hide Sheet")
}
}
}
) {
Scaffold {
Box(
//...
) {
Button(
onClick = {
coroutineScope.launch {
if (modalSheetState.isVisible)
modalSheetState.hide()
else
modalSheetState.animateTo(ModalBottomSheetValue.Expanded)
}
},
) {
Text(text = "Open Sheet")
}
}
}
}
view raw MainActivity.kt hosted with ❤ by GitHub

sheetShape is optional and totally up to you. I like to add it to give more rounded look to the bottom sheet.





sheetContent is where you put your bottom sheet UI. In our example we have Button which dismisses the bottom sheet on click.

As we can see from the example, we use coroutineScope to change bottom sheet state since modalSheetState.hide and modalSheetState.animateTo are suspendedfunctions.

Finally, inside of our Scaffoldwe have Button which expands bottom sheet on click.

Thats it! It’s very easy to create and manage bottom sheet with Jetpack Compose.

@Composable
fun BottomSheetLayout() {
val coroutineScope = rememberCoroutineScope()
val modalSheetState = rememberModalBottomSheetState(
initialValue = ModalBottomSheetValue.Hidden,
confirmStateChange = { it != ModalBottomSheetValue.HalfExpanded },
skipHalfExpanded = true
)
ModalBottomSheetLayout(
sheetState = modalSheetState,
sheetContent = {
Column(
//...
) {
Button(
onClick = {
coroutineScope.launch { modalSheetState.hide() }
}
) {
Text(text = "Hide Sheet")
}
}
}
) {
Scaffold {
Box(
modifier = Modifier
.fillMaxSize(),
contentAlignment = Alignment.Center,
) {
Button(
onClick = {
coroutineScope.launch {
if (modalSheetState.isVisible)
modalSheetState.hide()
else
modalSheetState.animateTo(ModalBottomSheetValue.Expanded)
}
},
) {
Text(text = "Open Sheet")
}
}
}
}
}
view raw MainActivity.kt hosted with ❤ by GitHub

Job Offers

Job Offers


    Android Test Automation Engineer

    Komoot
    Remote
    • Full Time
    apply now

    Senior Android Software Engineer (f/m/d)

    Paradox Cat GmbH
    Munich
    • Full Time
    apply now

    Android Software Engineer (f/m/d)

    Paradox Cat GmbH
    Munich
    • Full Time
    apply now

OUR VIDEO RECOMMENDATION

,

Branching out to Jetpack Compose

As one of the most widely used social media platforms, Twitter is always hunting for ways to better connect its users. In early 2021 the Client UI team at Twitter began the task of integrating…
Watch Video

Branching out to Jetpack Compose

Nacho López & Chris Banes
Staff Software Engineer
Twitter

Branching out to Jetpack Compose

Nacho López & Chr ...
Staff Software Engin ...
Twitter

Branching out to Jetpack Compose

Nacho López & C ...
Staff Software Engineer
Twitter

Jobs

Extras

Dismiss On Back

BackHandler(modalSheetState.isVisible) {
coroutineScope.launch { modalSheetState.hide() }
}
view raw MainActivity.kt hosted with ❤ by GitHub

With this simple code, we can close bottom sheet on back button press if visible.

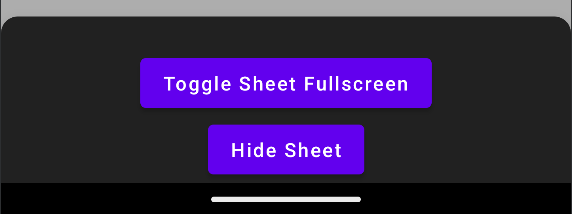

Toggle Between Fullscreen & Expanded
@Composable
fun BottomSheetLayout() {
//...
var isSheetFullScreen by remember { mutableStateOf(false) }
val roundedCornerRadius = if (isSheetFullScreen) 0.dp else 12.dp
val modifier = if (isSheetFullScreen)
Modifier
.fillMaxSize()
else
Modifier.fillMaxWidth()
ModalBottomSheetLayout(
sheetShape = RoundedCornerShape(topStart = roundedCornerRadius, topEnd = roundedCornerRadius),
sheetContent = {
Column(
modifier = modifier,
//...
) {
Button(
onClick = {
isSheetFullScreen = !isSheetFullScreen
}
) {
Text(text = "Toggle Sheet Fullscreen")
}
}
}
) {
//...
}
}
view raw MainActivity.kt hosted with ❤ by GitHub

First, we create isSheetFullScreen state variable and set roundedCornerRadius and modifier variables which will change on isSheetFullScreen state change. e.g., if isSheetFullScreen is true corner radius will be 0 else it’ll change to 12.

Finally, we are changing the state on Button click. If you want to present your bottom sheet only full screen, you can delete all states and simply change, Modifier.fillMaxWidth to Modifier.fillMaxSize.

Full Code with Extras
class MainActivity : ComponentActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContent {
JetpackComposeBottomSheetTheme {
Surface(
modifier = Modifier.fillMaxSize(),
color = MaterialTheme.colors.background
) {
BottomSheetLayout()
}
}
}
}
}
@SuppressLint("UnusedMaterialScaffoldPaddingParameter")
@OptIn(ExperimentalMaterialApi::class)
@Composable
fun BottomSheetLayout() {
val coroutineScope = rememberCoroutineScope()
val modalSheetState = rememberModalBottomSheetState(
initialValue = ModalBottomSheetValue.Hidden,
confirmStateChange = { it != ModalBottomSheetValue.HalfExpanded },
skipHalfExpanded = true
)
var isSheetFullScreen by remember { mutableStateOf(false) }
val roundedCornerRadius = if (isSheetFullScreen) 0.dp else 12.dp
val modifier = if (isSheetFullScreen)
Modifier
.fillMaxSize()
else
Modifier.fillMaxWidth()
BackHandler(modalSheetState.isVisible) {
coroutineScope.launch { modalSheetState.hide() }
}
ModalBottomSheetLayout(
sheetState = modalSheetState,
sheetShape = RoundedCornerShape(topStart = roundedCornerRadius, topEnd = roundedCornerRadius),
sheetContent = {
Column(
modifier = modifier,
horizontalAlignment = Alignment.CenterHorizontally,
verticalArrangement = Arrangement.Center,
) {
Button(
onClick = {
isSheetFullScreen = !isSheetFullScreen
}
) {
Text(text = "Toggle Sheet Fullscreen")
}
Button(
onClick = {
coroutineScope.launch { modalSheetState.hide() }
}
) {
Text(text = "Hide Sheet")
}
}
}
) {
Scaffold {
Box(
modifier = Modifier
.fillMaxSize(),
contentAlignment = Alignment.Center,
) {
Button(
onClick = {
coroutineScope.launch {
if (modalSheetState.isVisible)
modalSheetState.hide()
else
modalSheetState.animateTo(ModalBottomSheetValue.Expanded)
}
},
) {
Text(text = "Open Sheet")
}
}
}
}
}
view raw MainActivity.kt hosted with ❤ by GitHub

That’s it for this blog, I hope it was useful. 👋👋

You can contact me on,

This article was originally published on proandroiddev.com on December 06, 2022
