Are you struggling with implementing Animated Circular Progress Indicator (ACPI) using Jetpack Compose?
In this article, we will see how to implement a Circular Progress Indicator with animated progress completion status based on provided current value and the maximum value of the progress.
What it (ACPI) looks like?

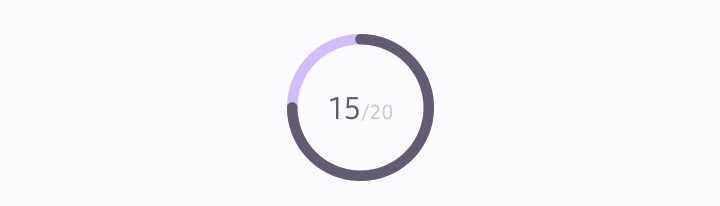

Animated Circular Progress Indicator — in action
How simple is the API?
You just have to pass a few parameters to the Composable and we are good to go with the animated Circular Progress Indicator
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| AnimatedCircularProgressIndicator( | |
| currentValue = 17, | |
| maxValue = 20, | |
| progressBackgroundColor = Purple80, | |
| progressIndicatorColor = PurpleGrey40, | |
| completedColor = Purple40 | |
| ) |
Different states
There are three different states of the ACPI.
- Initial state — showing 0% progress (0/20 in the picture below)
- progress state < 100% — showing progress based on current value (15/20 in the picture below)
- Max or Completed state — showing 100% progress — (20/20 in the picture below)

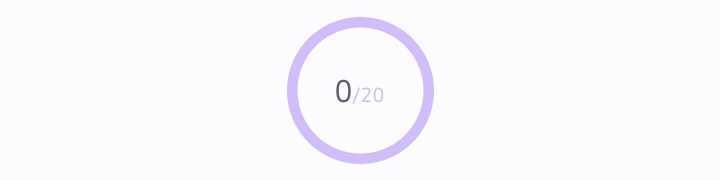

Initial state with 0% progress (Left) — 75 % Progress(Center) — 100% Completed(Right)
Deep dive into ACPI Composable
How do we show the progress status?
Here is the progress status composable to show progress in text form. For example, we are showing 15/20 in the centre with different styles and colours based on typography.
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| @Composable | |
| private fun ProgressStatus( | |
| currentValue: Int, | |
| maxValue: Int, | |
| progressBackgroundColor: Color, | |
| progressIndicatorColor: Color, | |
| completedColor: Color, modifier: Modifier = Modifier | |
| ) { | |
| Text(modifier = modifier, text = buildAnnotatedString { | |
| val emphasisSpan = | |
| Typography.titleLarge.copy(color = if (currentValue == maxValue) completedColor else progressIndicatorColor) | |
| .toSpanStyle() | |
| val defaultSpan = | |
| Typography.bodyMedium.copy(color = progressBackgroundColor).toSpanStyle() | |
| append(AnnotatedString("$currentValue", spanStyle = emphasisSpan)) | |
| append(AnnotatedString(text = "/", spanStyle = defaultSpan)) | |
| append(AnnotatedString(text = "$maxValue", spanStyle = defaultSpan)) | |
| } | |
| ) | |
| } |
Job Offers
OUR VIDEO RECOMMENDATION
With the advent of Android 15, edge-to-edge design has become the default configuration. Consequently, applications must be capable of accommodating window insets, including the system status bar and navigation bar, as well as supporting drawing…
Watch Video
Jobs
Lincolnshire, Illinois, United States, Holtsville, New York, United States
Marketing Developer, II
APPLY NOW
How do we draw an arc for Circular Progress Indicator?
We have made an extension function to draw a circular progress indicator by drawing an arc on the canvas. We will see Canvas in a while
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| private fun DrawScope.drawCircularProgressIndicator( | |
| startAngle: Float, | |
| sweep: Float, | |
| color: Color, | |
| stroke: Stroke | |
| ) { | |
| // To draw this circle we need a rect with edges that line up with the midpoint of the stroke. | |
| // To do this we need to remove half the stroke width from the total diameter for both sides. | |
| val diameterOffset = stroke.width / 2 | |
| val arcDimen = size.width - 2 * diameterOffset | |
| drawArc( | |
| color = color, | |
| startAngle = startAngle, | |
| sweepAngle = sweep, | |
| useCenter = false, | |
| topLeft = Offset(diameterOffset, diameterOffset), | |
| size = Size(arcDimen, arcDimen), | |
| style = stroke | |
| ) | |
| } |
How do we draw it on Canvas?
Here is how we draw different states of the Circular Progress Indicator on the Canvas
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| Canvas( | |
| Modifier | |
| .progressSemantics(currentValue / maxValue.toFloat()) | |
| .size(CircularIndicatorDiameter) | |
| ) { | |
| // Start at 12 O'clock | |
| val startAngle = 270f | |
| val sweep: Float = animateFloat.value * 360f | |
| val diameterOffset = stroke.width / 2 | |
| drawCircle( | |
| color = progressBackgroundColor, | |
| style = stroke, | |
| radius = size.minDimension / 2.0f - diameterOffset | |
| ) | |
| drawCircularProgressIndicator(startAngle, sweep, progressIndicatorColor, stroke) | |
| if (currentValue == maxValue) { | |
| drawCircle( | |
| color = completedColor, | |
| style = stroke, | |
| radius = size.minDimension / 2.0f - diameterOffset | |
| ) | |
| } | |
| } |
How do we animate this?
We are using Jetpack compose Animatable to animate this Circular Progress Indicator and calculating the target value from the currentValue and maxValue provided.
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| val animateFloat = remember { Animatable(0f) } | |
| LaunchedEffect(animateFloat) { | |
| animateFloat.animateTo( | |
| targetValue = currentValue / maxValue.toFloat(), | |
| animationSpec = tween(durationMillis = 2000, easing = FastOutSlowInEasing) | |
| ) | |
| } |
Let’s join the different parts of this PUZZLE 🤔
Here is the full Composable which is drawing this Animated Circular Progress Indicator and VOILA 🚀
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| import androidx.compose.animation.core.Animatable | |
| import androidx.compose.animation.core.FastOutSlowInEasing | |
| import androidx.compose.animation.core.tween | |
| import androidx.compose.foundation.Canvas | |
| import androidx.compose.foundation.layout.Box | |
| import androidx.compose.foundation.layout.size | |
| import androidx.compose.foundation.progressSemantics | |
| import androidx.compose.material3.Text | |
| import androidx.compose.runtime.Composable | |
| import androidx.compose.runtime.LaunchedEffect | |
| import androidx.compose.runtime.remember | |
| import androidx.compose.ui.Alignment | |
| import androidx.compose.ui.Modifier | |
| import androidx.compose.ui.geometry.Offset | |
| import androidx.compose.ui.geometry.Size | |
| import androidx.compose.ui.graphics.Color | |
| import androidx.compose.ui.graphics.StrokeCap | |
| import androidx.compose.ui.graphics.StrokeJoin | |
| import androidx.compose.ui.graphics.drawscope.DrawScope | |
| import androidx.compose.ui.graphics.drawscope.Stroke | |
| import androidx.compose.ui.platform.LocalDensity | |
| import androidx.compose.ui.text.AnnotatedString | |
| import androidx.compose.ui.text.buildAnnotatedString | |
| import androidx.compose.ui.unit.dp | |
| import com.example.circularprogressindicator.ui.theme.Typography | |
| @Composable | |
| fun AnimatedCircularProgressIndicator( | |
| currentValue: Int, | |
| maxValue: Int, | |
| progressBackgroundColor: Color, | |
| progressIndicatorColor: Color, | |
| completedColor: Color, | |
| modifier: Modifier = Modifier | |
| ) { | |
| val stroke = with(LocalDensity.current) { | |
| Stroke(width = 6.dp.toPx(), cap = StrokeCap.Round, join = StrokeJoin.Round) | |
| } | |
| Box(modifier = modifier, contentAlignment = Alignment.Center) { | |
| ProgressStatus( | |
| currentValue = currentValue, | |
| maxValue = maxValue, | |
| progressBackgroundColor = progressBackgroundColor, | |
| progressIndicatorColor = progressIndicatorColor, | |
| completedColor = completedColor | |
| ) | |
| val animateFloat = remember { Animatable(0f) } | |
| LaunchedEffect(animateFloat) { | |
| animateFloat.animateTo( | |
| targetValue = currentValue / maxValue.toFloat(), | |
| animationSpec = tween(durationMillis = 2000, easing = FastOutSlowInEasing) | |
| ) | |
| } | |
| Canvas( | |
| Modifier | |
| .progressSemantics(currentValue / maxValue.toFloat()) | |
| .size(CircularIndicatorDiameter) | |
| ) { | |
| // Start at 12 O'clock | |
| val startAngle = 270f | |
| val sweep: Float = animateFloat.value * 360f | |
| val diameterOffset = stroke.width / 2 | |
| drawCircle( | |
| color = progressBackgroundColor, | |
| style = stroke, | |
| radius = size.minDimension / 2.0f - diameterOffset | |
| ) | |
| drawCircularProgressIndicator(startAngle, sweep, progressIndicatorColor, stroke) | |
| if (currentValue == maxValue) { | |
| drawCircle( | |
| color = completedColor, | |
| style = stroke, | |
| radius = size.minDimension / 2.0f - diameterOffset | |
| ) | |
| } | |
| } | |
| } | |
| } | |
| @Composable | |
| private fun ProgressStatus( | |
| currentValue: Int, | |
| maxValue: Int, | |
| progressBackgroundColor: Color, | |
| progressIndicatorColor: Color, | |
| completedColor: Color, modifier: Modifier = Modifier | |
| ) { | |
| Text(modifier = modifier, text = buildAnnotatedString { | |
| val emphasisSpan = | |
| Typography.titleLarge.copy(color = if (currentValue == maxValue) completedColor else progressIndicatorColor) | |
| .toSpanStyle() | |
| val defaultSpan = | |
| Typography.bodyMedium.copy(color = progressBackgroundColor).toSpanStyle() | |
| append(AnnotatedString("$currentValue", spanStyle = emphasisSpan)) | |
| append(AnnotatedString(text = "/", spanStyle = defaultSpan)) | |
| append(AnnotatedString(text = "$maxValue", spanStyle = defaultSpan)) | |
| } | |
| ) | |
| } | |
| private fun DrawScope.drawCircularProgressIndicator( | |
| startAngle: Float, | |
| sweep: Float, | |
| color: Color, | |
| stroke: Stroke | |
| ) { | |
| // To draw this circle we need a rect with edges that line up with the midpoint of the stroke. | |
| // To do this we need to remove half the stroke width from the total diameter for both sides. | |
| val diameterOffset = stroke.width / 2 | |
| val arcDimen = size.width - 2 * diameterOffset | |
| drawArc( | |
| color = color, | |
| startAngle = startAngle, | |
| sweepAngle = sweep, | |
| useCenter = false, | |
| topLeft = Offset(diameterOffset, diameterOffset), | |
| size = Size(arcDimen, arcDimen), | |
| style = stroke | |
| ) | |
| } | |
| // Diameter of the indicator circle | |
| private val CircularIndicatorDiameter = 84.dp |
For more detail, go through these references
Jetpack Compose, animations in Jetpack Compose, Layouts in Jetpack Compose
I hope you learned something new today and thanks for reading this far!
