👋 Hi! Today, I’d like to tell you about how I optimized a workflow for developing custom UI components in Jetpack Compose.
The Good Old Constraint Layout

Before Compose, many developers used Constraint Layout to build most of their app’s UI. One advantage it has over Compose — instant visualization of paddings between different elements of the UI.

A screenshot of android studio with constrained layout editor. Side-by-side are: blueprint and normal render windows. Constraint lines have numbers representing their length.Constraint Layout editor in Android Studio

When Compose came around, it introduced us to the idea of writing UI directly in code without any graphic tools. It was a big change, but it turned out amazingly good—developers became much more productive and Android Studio’s preview feature eliminated most of the disadvantages of this approach.

The Problem

However, there is a use case where visualization of dimensions is still needed in live preview, while you are building the UI: complex design system components.

A button design component in many different parameter combinations

What is the value of that padding??

Typically, the code for these things looks like this:

val startPadding = when (size) {
    Small -> if (icon) 4 else 6
    Medium -> if (icon) 6 else 10
    Large -> if (icon) 10 else 14
}.dp

// endPadding, verticalPadding, iconPadding, etc.

It is very easy to get lost in the numbers, sizes, and paddings. After modifying the code above, you look at the composable preview in AS and wonder, have you actually matched the design spec, or there is a small error in one of the dozens of configurations 😩?

To solve this problem, I decided to write a small library that would have a capability similar to the Constraint Layout visual editor’s blueprint mode.

The Blueprint

The Blueprint library provides a way to visualize dimensional information in your UI using a simple DSL-based definition:

  1. Just wrap your target UI in a Blueprint composable
  2. Mark children with Modifier.blueprintId(id: String) modifier
  3. Write the blueprint definition
Blueprint(
    blueprintBuilder = {
        widths {
            group {
                "item0".right lineTo "item1".left
                "item0" lineTo "item0"
                "item2" lineTo "item3"
            }
        }
        heights {
            group { "item0Icon" lineTo "item0Text" }
            group { "item0" lineTo "item0" }
            group(End) { "item3Icon".bottom lineTo "item3Text".top }
        }
    }
) {
    val items = remember { listOf("Songs", "Artists", "Playlists", "Settings") }
    NavigationBar {
        items.forEachIndexed { index, item ->
            NavigationBarItem(
                modifier = Modifier.blueprintId("item$index"),
                icon = { Icon(Modifier.blueprintId("item${index}Icon"), TODO()) },
                label = { Text(Modifier.blueprintId("item${index}Text"), TODO()) },
                selected = index == 0,
                onClick = { TODO() }
            )
        }
    }
}

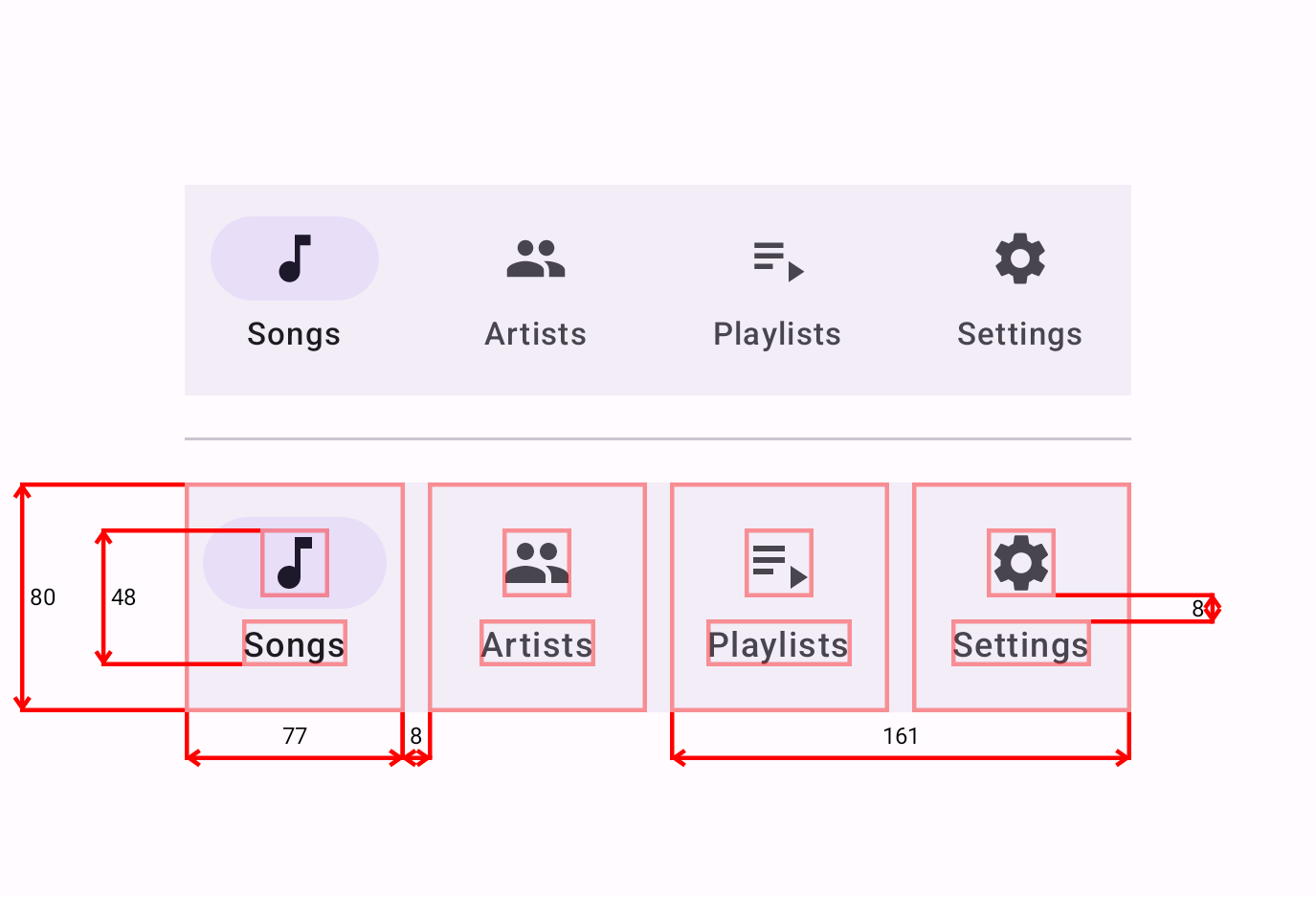

This is the result:

Blueprint of a Material3 NavigationBar



Another example:

Blueprint of a Material3 Button

Job Offers

Job Offers

There are currently no vacancies.

OUR VIDEO RECOMMENDATION

, ,

Migrating to Jetpack Compose – an interop love story

Most of you are familiar with Jetpack Compose and its benefits. If you’re able to start anew and create a Compose-only app, you’re on the right track. But this talk might not be for you…
Watch Video

Migrating to Jetpack Compose - an interop love story

Simona Milanovic
Android DevRel Engineer for Jetpack Compose
Google

Migrating to Jetpack Compose - an interop love story

Simona Milanovic
Android DevRel Engin ...
Google

Migrating to Jetpack Compose - an interop love story

Simona Milanovic
Android DevRel Engineer f ...
Google

Jobs

No results found.

Lines in one group will be drawn at the same depth level.

The placing order of groups is the following:
first called -> placed closer to the composable.

In other words: going out from the center, like in an onion.

To produce a pretty blueprint, try to place in one group only
non-overlapping dimension lines. Place the overlapping ones in different groups.

Features

You can customize:

  1. Line and border strokes (width and color)
  2. Font size and color
  3. Arrow style (length, angle, round or square cap)
  4. Decimal precision of the dimensional values

Of course, Blueprint works in Android Studio’s Preview✨!

Blueprint in Android Studio’s Preview

Also, you can disable all the overhead of this library in your release builds by either:

  1. Disabling blueprint rendering using blueprintEnabled property.
  2. Using the no-op version of the library:
dependencies {
    debugImplementation("com.github.popovanton0.blueprint:blueprint:LATEST_VERSION")
    releaseImplementation("com.github.popovanton0.blueprint:blueprint-no-op:LATEST_VERSION")
}
How it works

blueprintId modifiers collect LayoutCoordinates of each target using OnGloballyPositionedModifier interface. LayoutCoordinates contains info about the absolute and relative position of the target, plus its size.

Then, the modifier puts all LayoutCoordinates in a ModifierLocal map — ModifierLocalBlueprintMarkers (alternative to CompositionLocal for modifier chains).

// from: https://github.com/popovanton0/Blueprint/blob/main/blueprint/src/main/java/com/popovanton0/blueprint/BlueprintId.kt

public fun Modifier.blueprintId(
    id: String,
    sizeUnits: SizeUnits? = null
): Modifier =
    // ...
    BlueprintMarkerModifier(id, sizeUnits)

private class BlueprintMarkerModifier(
    private val id: String,
) : ModifierLocalConsumer, OnGloballyPositionedModifier {

    private var markers: MutableMap<String, BlueprintMarker>? = null

    override fun onModifierLocalsUpdated(scope: ModifierLocalReadScope) = with(scope) {
        markers = ModifierLocalBlueprintMarkers.current
    }

    override fun onGloballyPositioned(coordinates: LayoutCoordinates) {
        val markers = markers ?: return
        if (coordinates.isAttached) {
            markers.remove(id)
            markers[id] = BlueprintMarker(coordinates)
        } else {
            markers.remove(id)
        }
    }

    // ...
}

LayoutCoordinates are updated on each position and size change, thus keeping the ModifierLocalBlueprintMarkers map up-to-date.

Then, in Blueprint composable, ModifierLocalBlueprintMarkers is provided with a value, and the blueprint is drawn on top of the target composable.

// from: https://github.com/popovanton0/Blueprint/blob/main/blueprint/src/main/java/com/popovanton0/blueprint/Blueprint.kt#L155

val markers = remember { mutableStateMapOf<String, BlueprintMarker>() }
var rootCoordinates by remember { mutableStateOf<LayoutCoordinates?>(null) }

Box(
    modifier = modifier
        // applying paddint to account for long dimension lines
        // outside of the wrapped composable
        .run { if (applyPadding) padding(blueprint, groupSpace) else this }
        // in the actual code, this modifier is
        // reimplemented, as to not depend on experimental APIs
        .modifierLocalProvider(ModifierLocalBlueprintMarkers) { markers }
        .onGloballyPositioned { rootCoordinates = it }
        .drawWithContent {
            drawContent()
            val params = // ...
            drawBlueprint(params) // big function 😅
        }
) {
    content()
}

So all of the logic for calculating sizes, relative positions, distances, and dimensions is handled in the draw phase.

Conclusion

This library helped me a lot during the development of complicated design system components, and I hope it will help you too.

Feel free to ⭐ Blueprint library on GitHub:

GitHub – popovanton0/Blueprint: 📐 Visualize dimensions of your composables on a blueprint!

That’s all for today, I hope it helps! Feel free to leave a comment if something is not clear or if you have questions. Thank you for reading!

This article was previously published on proandroiddev.com
